- electric sauna heater

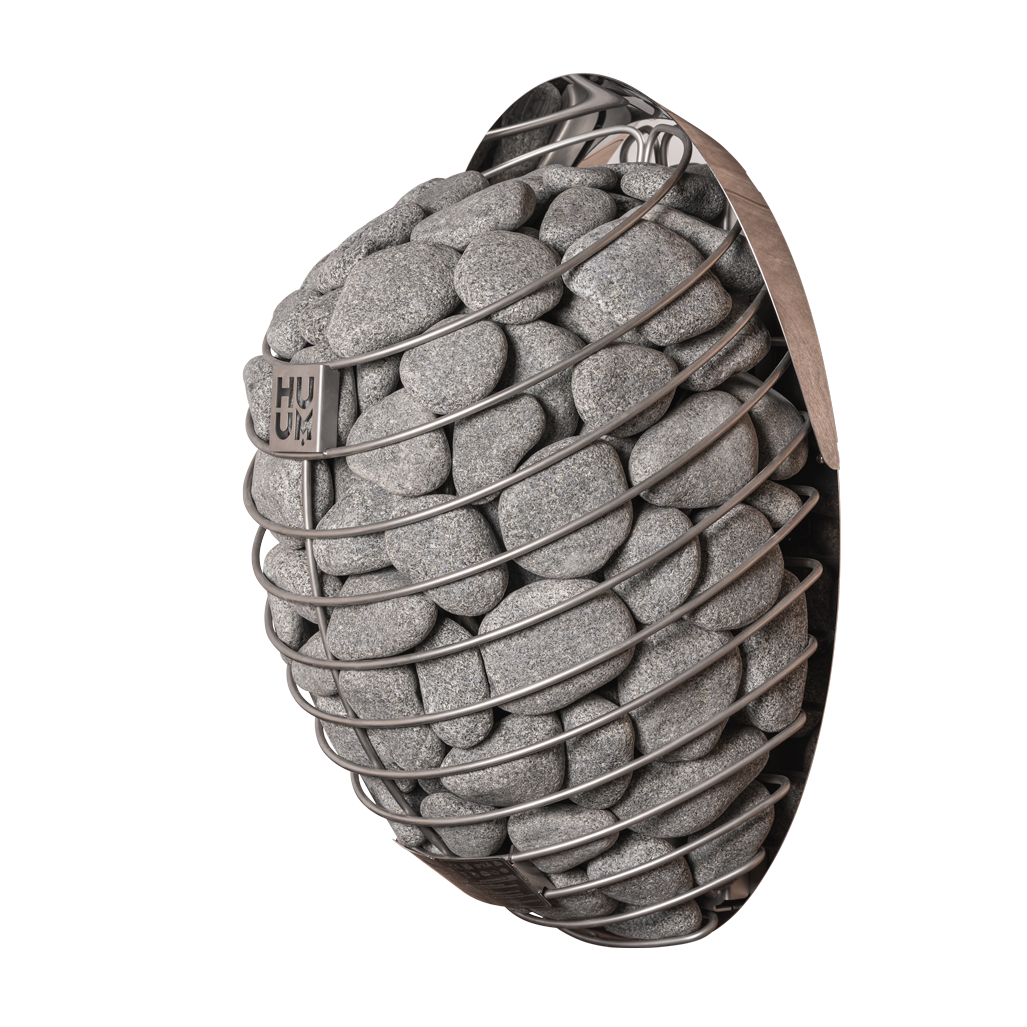

- wall mount
- 9 kW DROP sauna heater set includes a heat guiding device

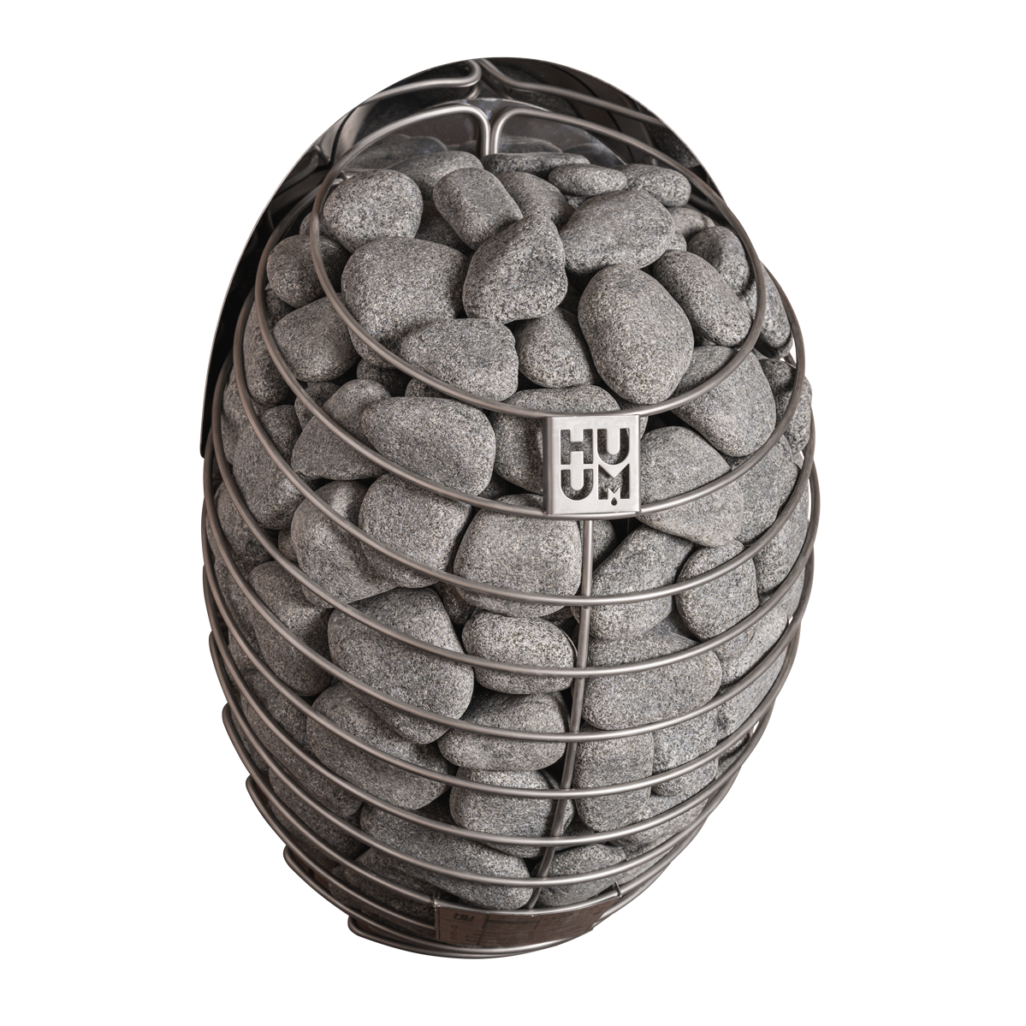

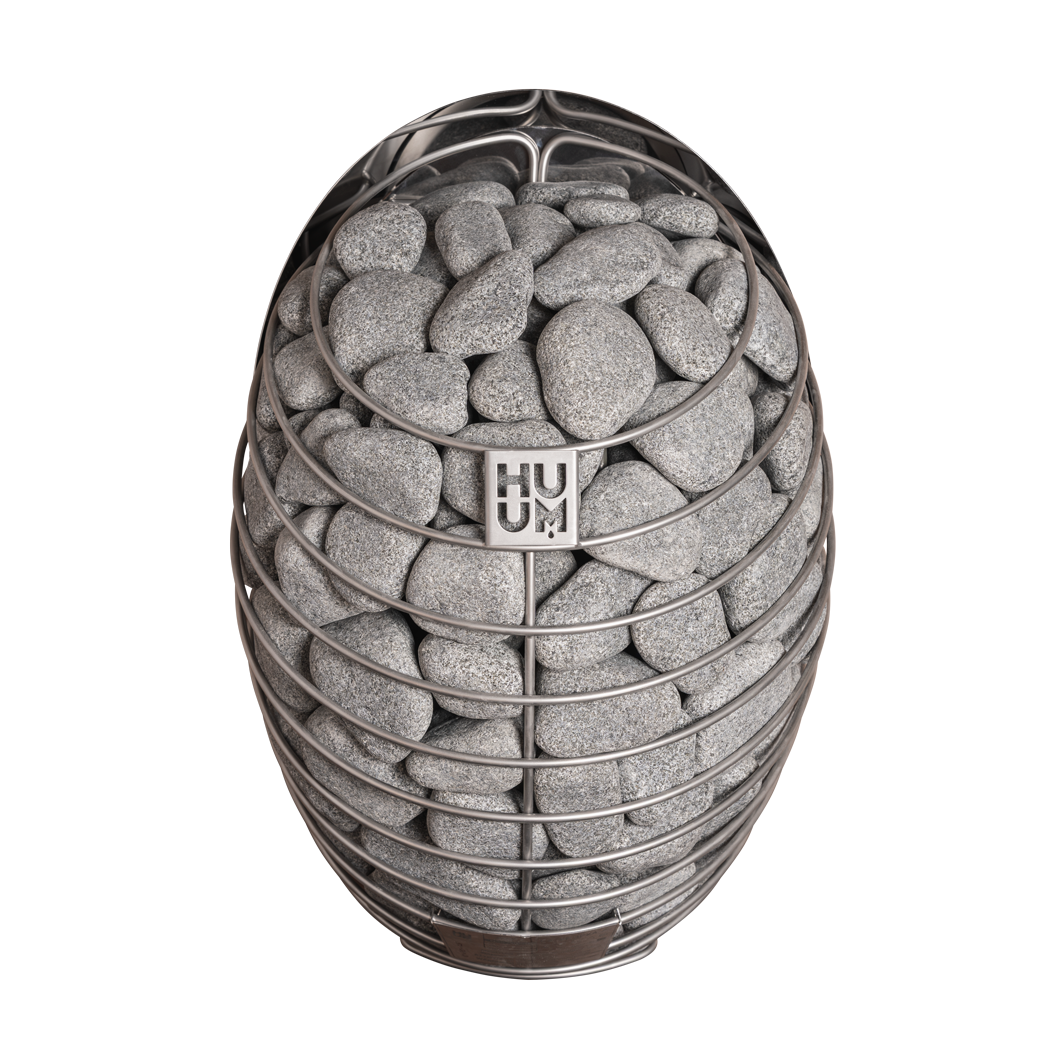

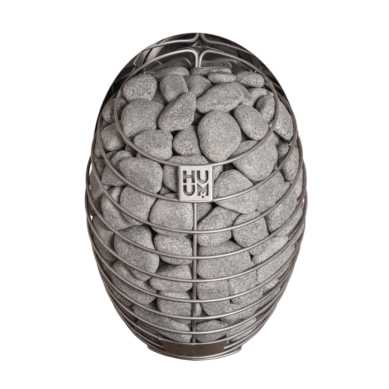

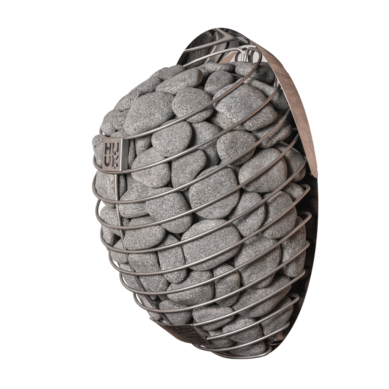

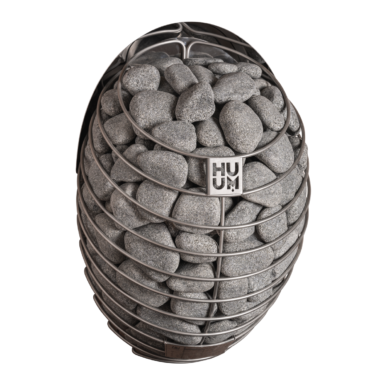

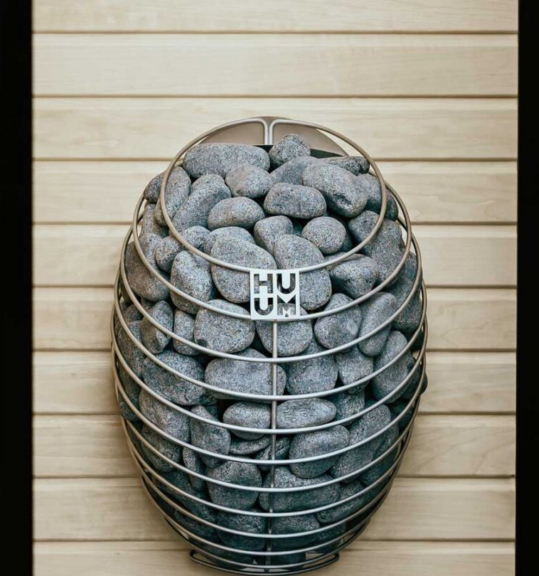

DROP electric sauna heater
Electric sauna heaters
- Unique design
- Mild and long-lasting steam
- Control with mobile app

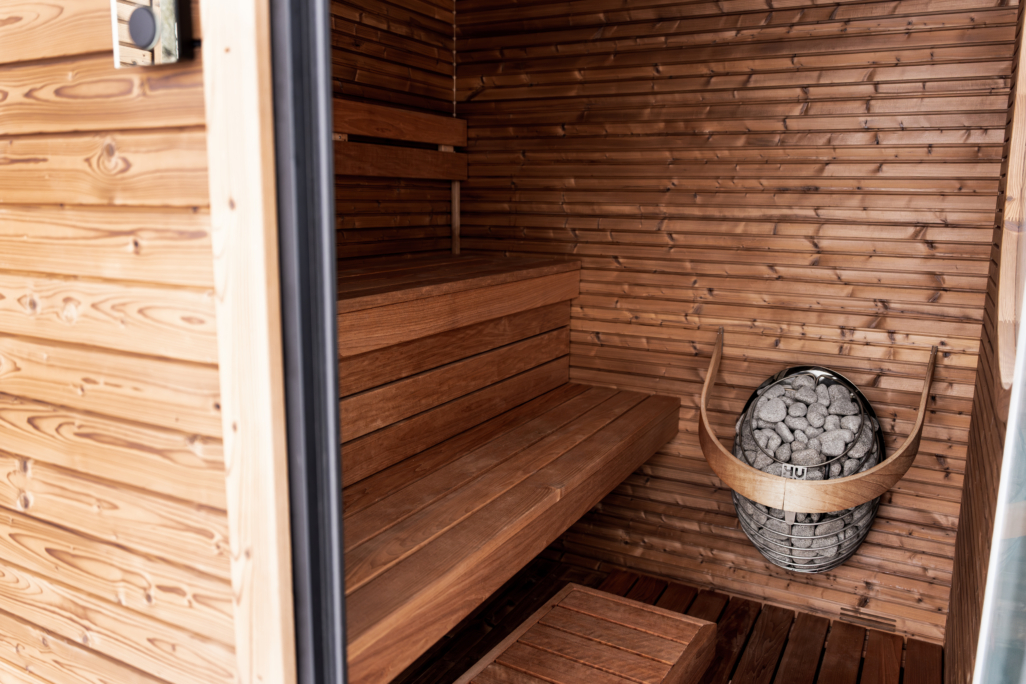

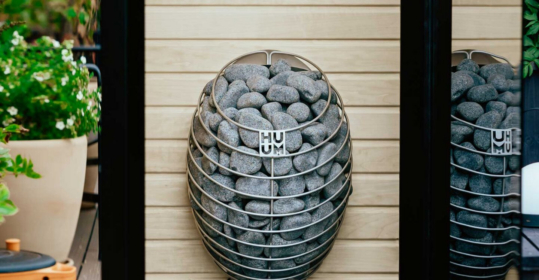

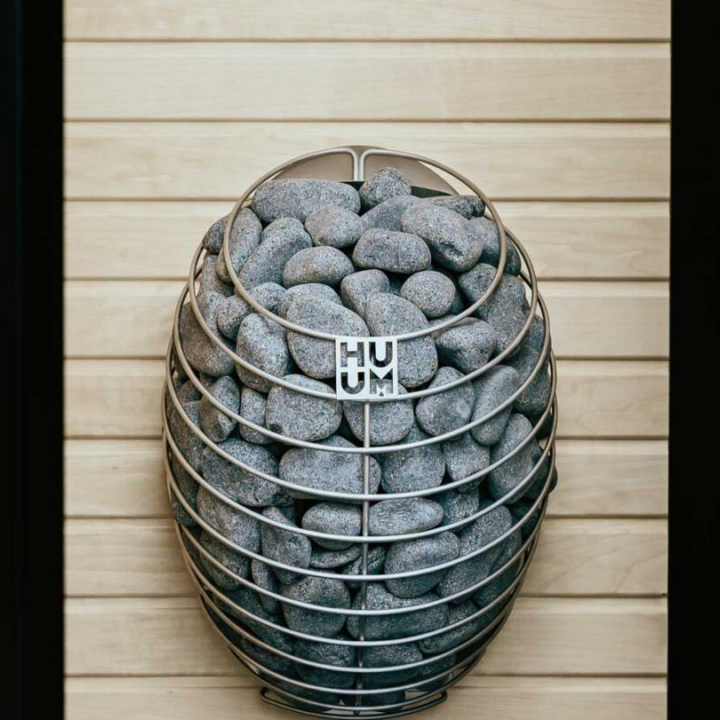

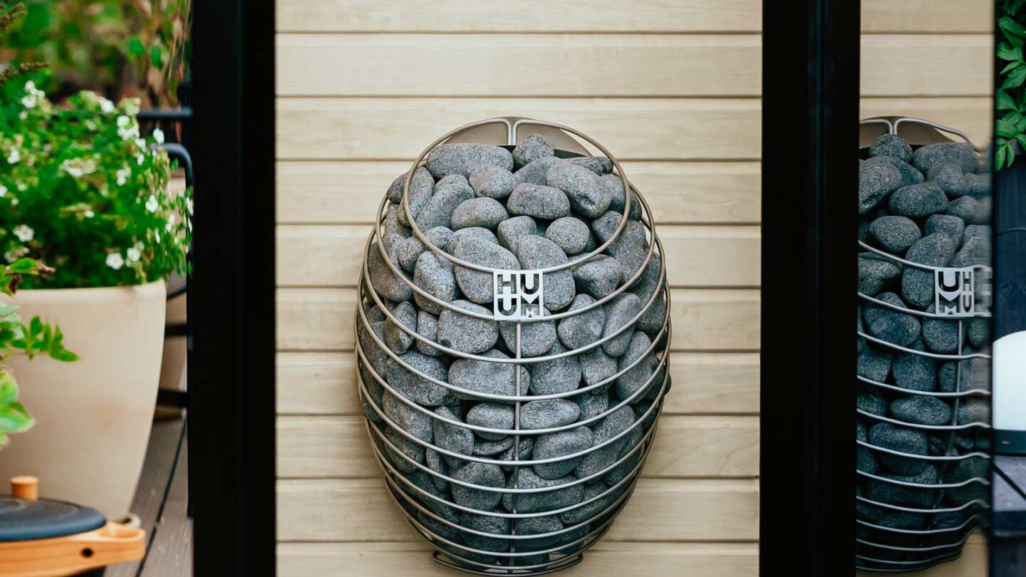

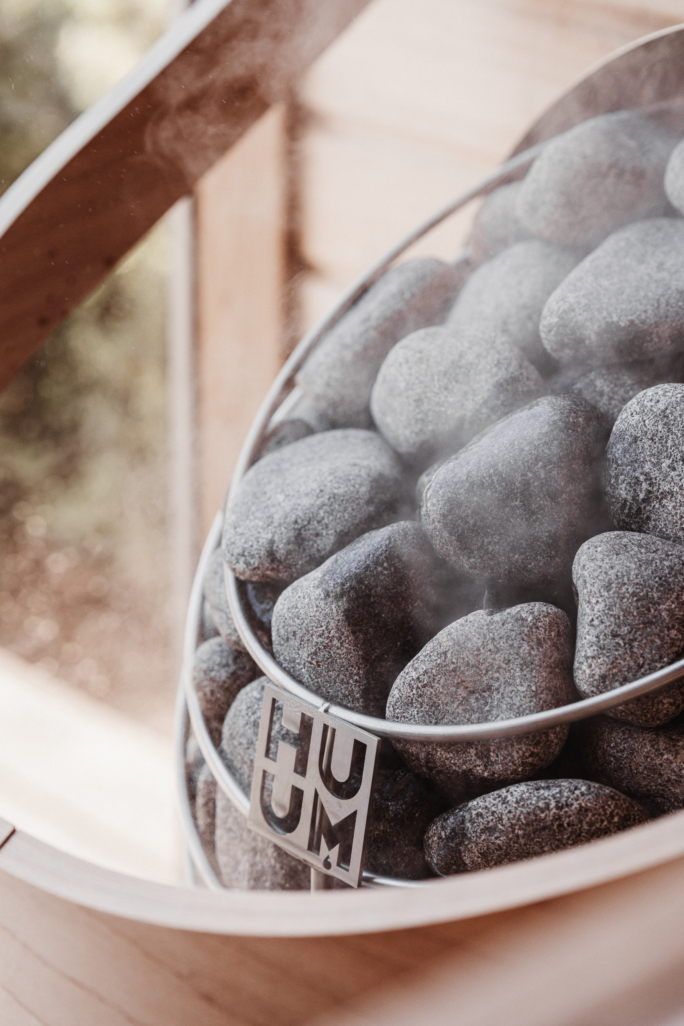

DROP electric sauna heater is inspired by the purest element of nature – a drop of water. The sleek and rounded design adds a touch of elegance to any sauna interior. In 2015 the DROP was awarded with prestigious Red Dot design award. In addition to its aesthetic appeal, the DROP heater boasts several outstanding features. This wall-mounted heater, despite its compact size, can accommodate up to 55 kg of stones, which is more than most wood-burning heaters. It provides a gentle and long-lasting steam and comes with durable stainless steel details. With its impressive features and superior appearance, the DROP sauna heater is a must-have for any sauna enthusiast.
Specifications
Models
Heater
- Power rating 4,5 kW
- Steam room min 3 m³
- Steam room max 7 m³
- Holding capacity of sauna rocks 55 kg
- Weight 11 kg
- Height 590 mm
- Width 390 mm
- Depth 335 mm
Connection
- Fuse 10 A
- Supply voltage, 3-phase 3/N~400V
- Power cable (N x mm²) 5 x 1.5
230V 1N connection is analogous to a 3-phase connection. Division of heating circuits must precede the circuit breaker.

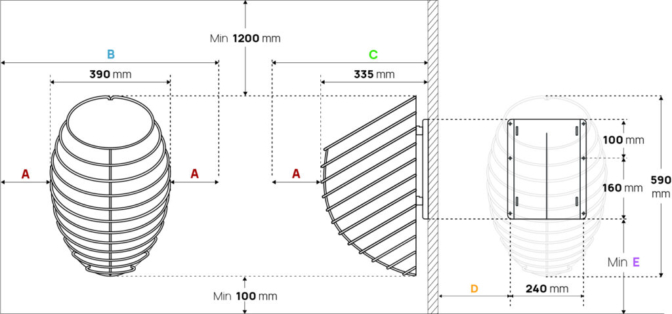

Safety distances
- A 100 mm
- B 590 mm
- C 435 mm
- D 170 mm
- E min 310 mm
Heater
- Power rating 6 kW
- Steam room min 5 m³
- Steam room max 9 m³
- Holding capacity of sauna rocks 55 kg
- Weight 11 kg
- Height 590 mm
- Width 390 mm
- Depth 335 mm
Connection
- Fuse 10 A
- Supply voltage, 3-phase 3/N~400V
- Power cable (N x mm²) 5 x 1.5
230V 1N connection is analogous to a 3-phase connection. Division of heating circuits must precede the circuit breaker.
Safety distances
- A 120 mm
- B 630 mm
- C 455 mm
- D 190 mm
- E min 310 mm
Heater
- Power rating 9 kW
- Steam room min 8 m³
- Steam room max 13 m³
- Holding capacity of sauna rocks 55 kg
- Weight 11 kg
- Height 590 mm
- Width 390 mm
- Depth 335 mm
Connection
- Fuse 16 A
- Supply voltage, 3-phase 3/N~400V
- Power cable (N x mm²) 5 x 2.5
230V 1N connection is analogous to a 3-phase connection. Division of heating circuits must precede the circuit breaker.
Safety distances
- A 150 mm
- B 690 mm
- C 485 mm
- D 220 mm
- E min 310 mm
The set includes
Heater aditionally needs
- UKU sauna control system
- 55 kg of sauna stones with a diameter of 5–10 cm
- Heat-resistant power cable
Design options
- You can choose a control panel that suits the interior design of your sauna: GLASS, CLASSIC, or WOOD
- The UKU control system set already includes a black plastic control panel CLASSIC Black.

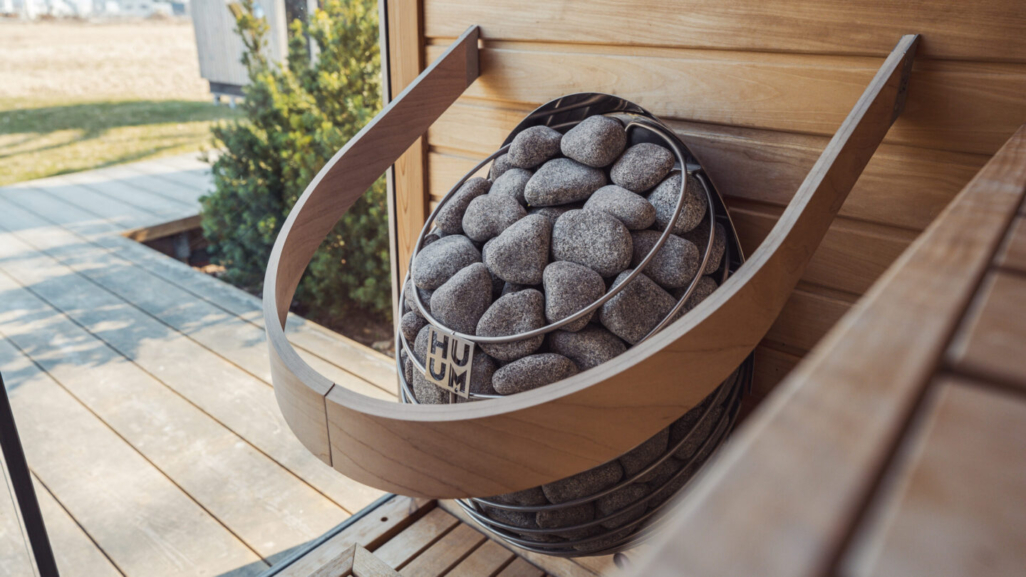

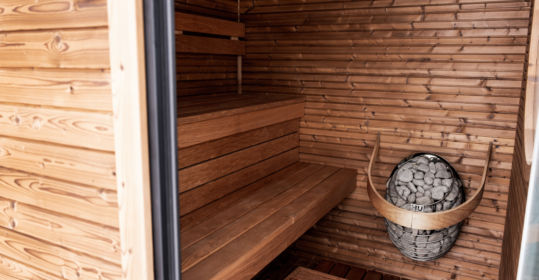

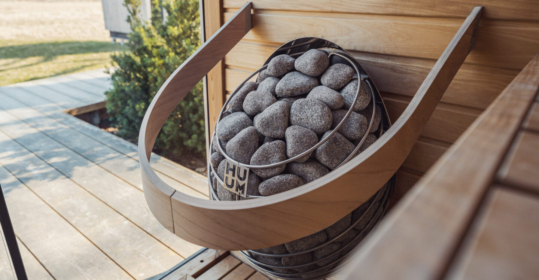

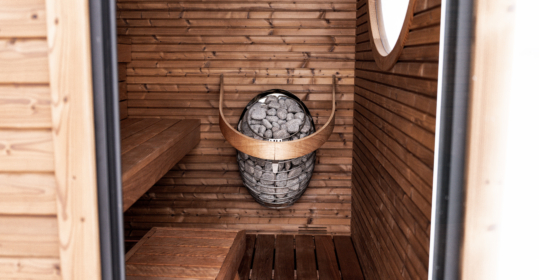

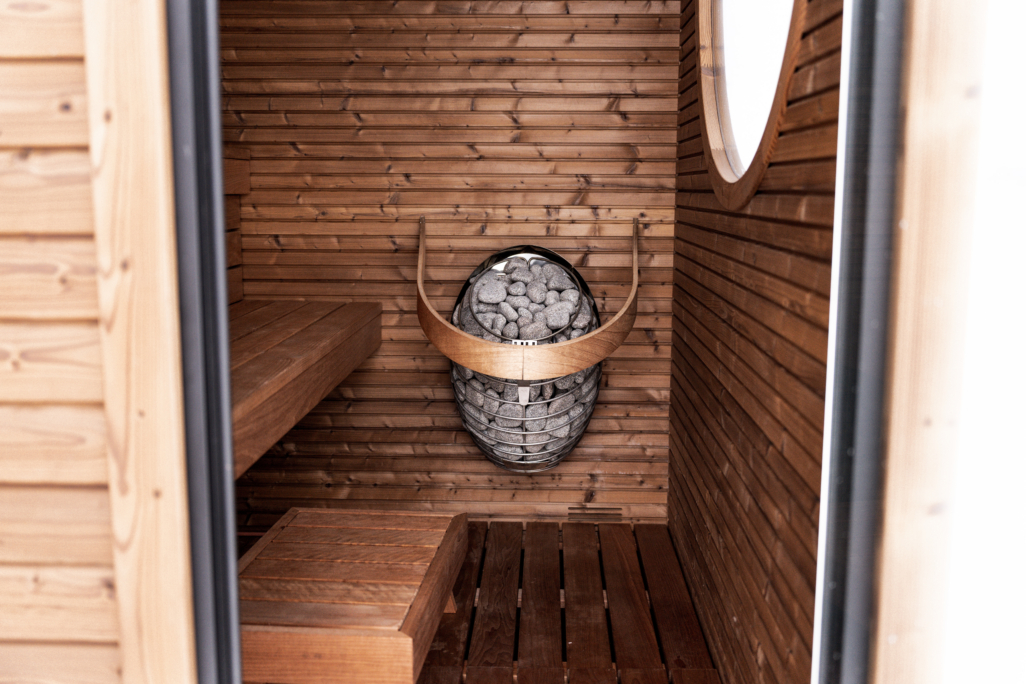

- The safety railing with wooden arches complements the design and adds safety.

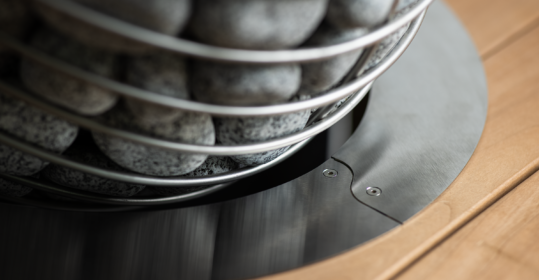

- As a design option, DROP electric sauna heater can be embedded into the sauna bench.
- When the heater is embedded, at least 550 mm of the heater should protrude from the sauna bench surface.

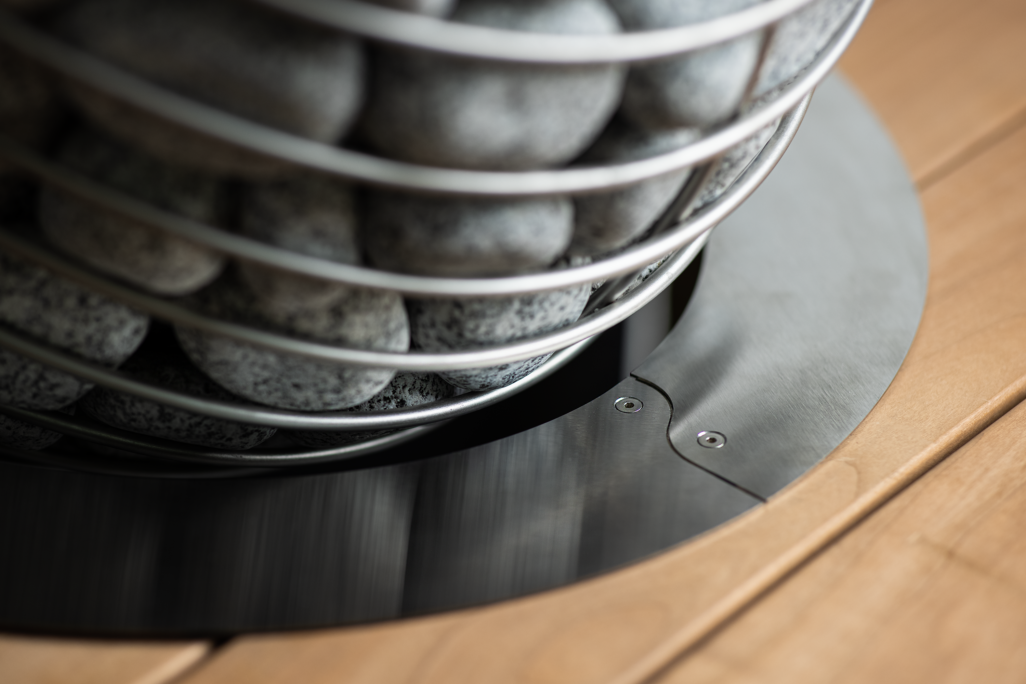

- Use the embedding flange of the DROP electric sauna heater to cover the cut rims of the opening.
Resources
-
HUUM DROP Manual
2.36 MB -
HUUM DROP Heat Diverter Installation EU
1.33 MB -
Images of DROP sauna heater
38.48 MB -
HUUM DROP DWG
0.35 MB -
HUUM DROP OBJ
4.90 MB -
HUUM DROP SKP
53.50 MB -
HUUM DROP SKB
53.47 MB -
HUUM DROP IFC
11.29 MB
-
Red Dot award 2015
Easy to use
Soft steam
Long-lasting relaxation
Stainless steel
CE certificate
Safety and control
Made in Estonia
-

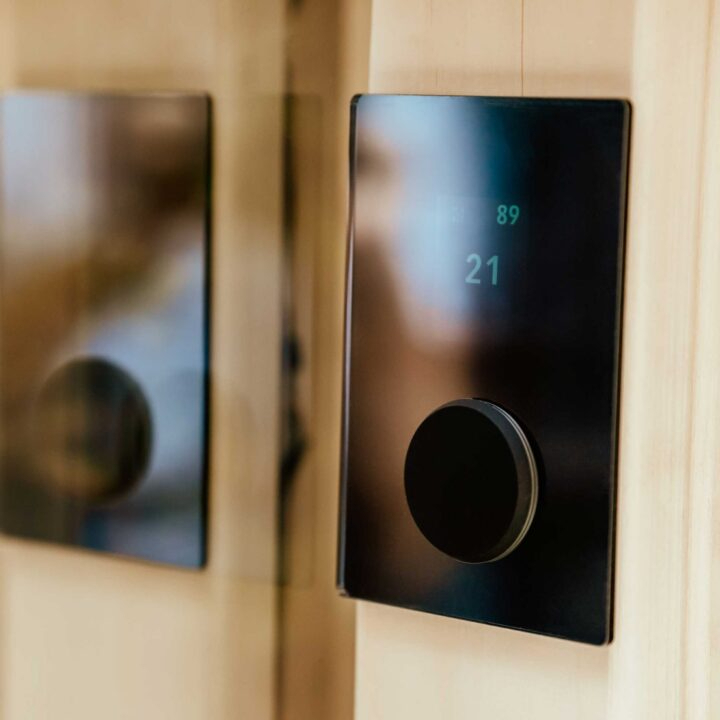

Classy and smart sauna controller
HUUM sauna controller represents an intuitive and efficient solution for heating the sauna. Sauna controllers are available with different enclosures, and the menu is simple and user-friendly. HUUMcontrollers heat the sauna through the smart UKU sauna control system. You can choose a suitable model, depending on whether you prefer to heat the sauna on site or via the HUUM mobile app. UKU sauna control system ensures simplicity and safety of sauna heating, and it is compatible with electric sauna heaters of various manufacturers.
-
HUUM app enables one to heat the sauna from a smartphone
HUUM mobile app allows you to heat the sauna from your phone, wherever you are. It doesn’t matter whether you are heading home from the office, finishing your evening jog or simply wish to have an unplanned rewarding sauna evening with your friends – just a few clicks on the smartphone, and a hot sauna awaits you!

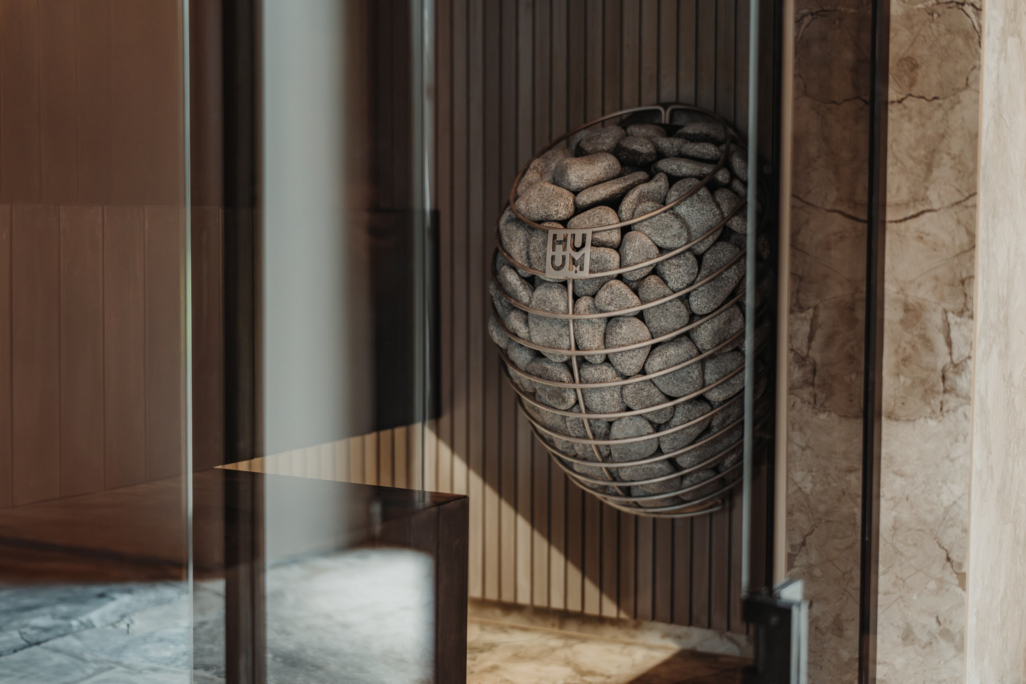

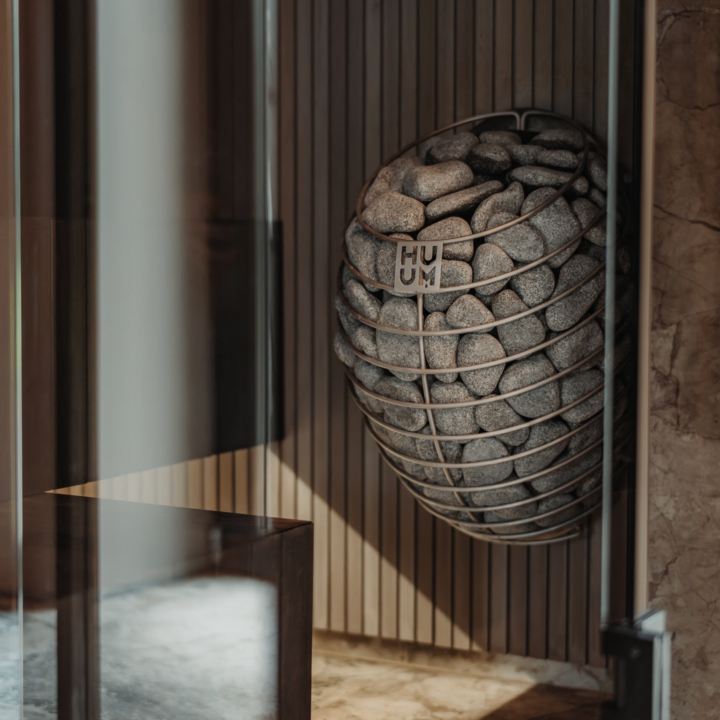

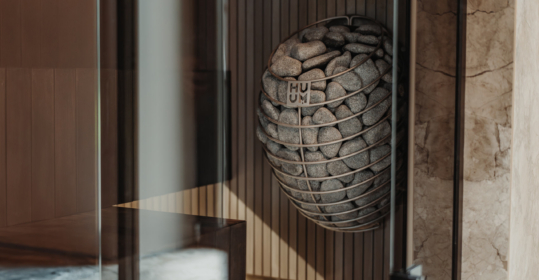

DROP electric sauna heater has won the Red Dot design award
The organic and minimalist design of the DROP electric sauna heater ensures that it’s the eye-catching focal point of each steam room. Well-planned construction of the sauna heater is centered on the compact shape, massive capacity and copious steam. DROP sauna heater holds 55 kg of sauna rocks that maintain long-lasting heat and provide mild steam.
DROP sauna heater has received the internationally recognized reputable Red Dot product design award for its eye-catching design and masterful craftsmanship.
Learn more:
Three products of HUUM that have won the Red Dot award
Made with care in Estonia
HUUM sauna heaters are made from stainless steel, and they go through a lengthy and carefully monitored manufacturing process that assures the highest quality of each product.
Learn more:
Craftmanship of sauna heaters and sauna controllers

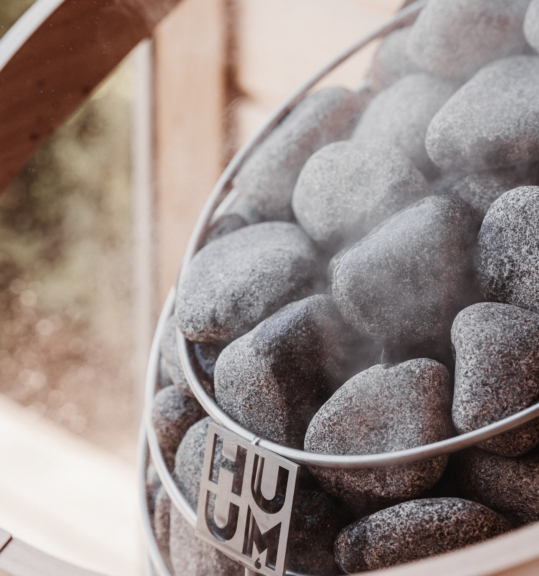

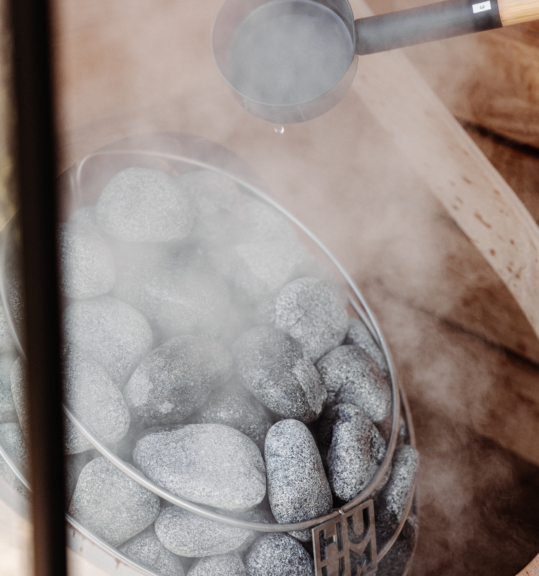

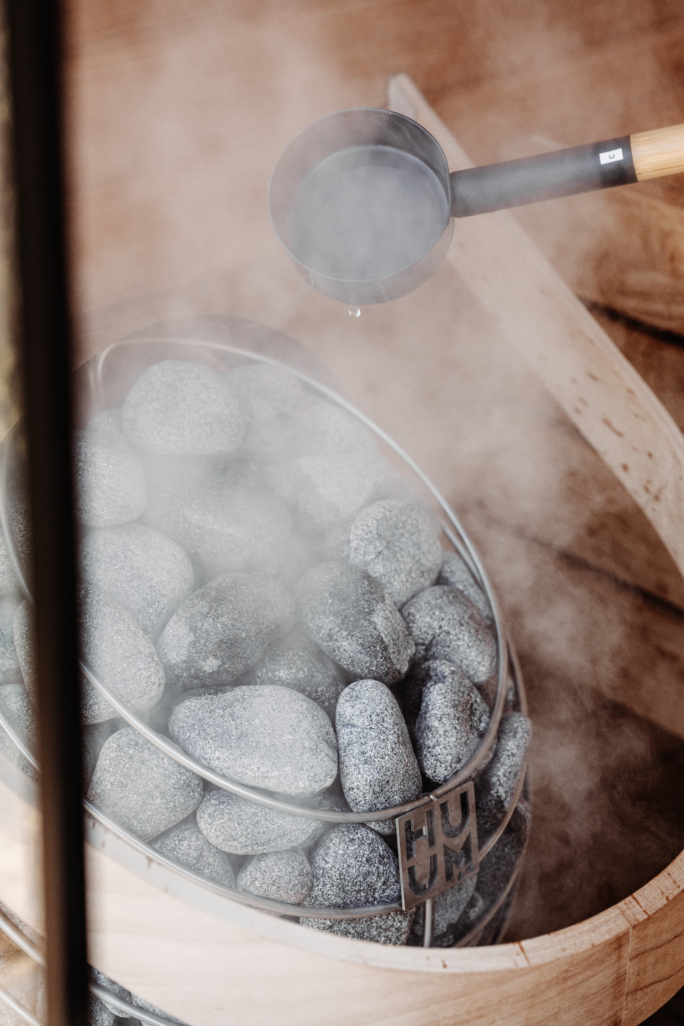

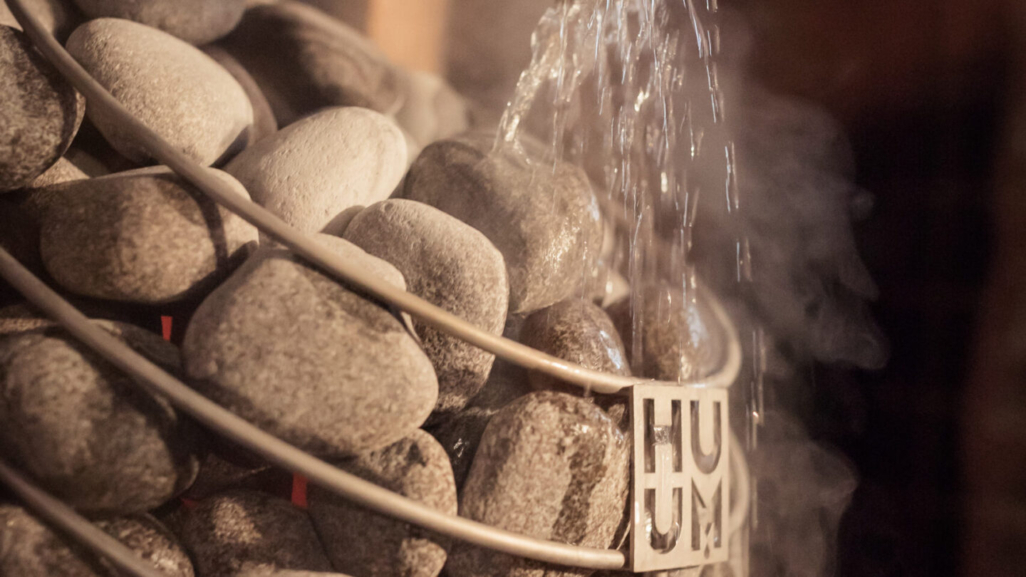

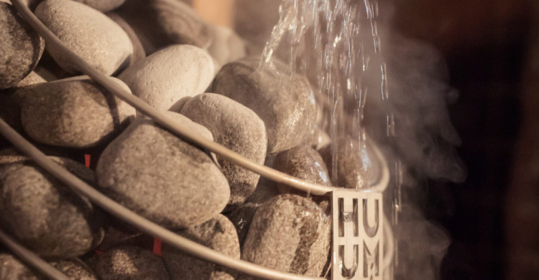

Soft steam that resembles the traditional sauna

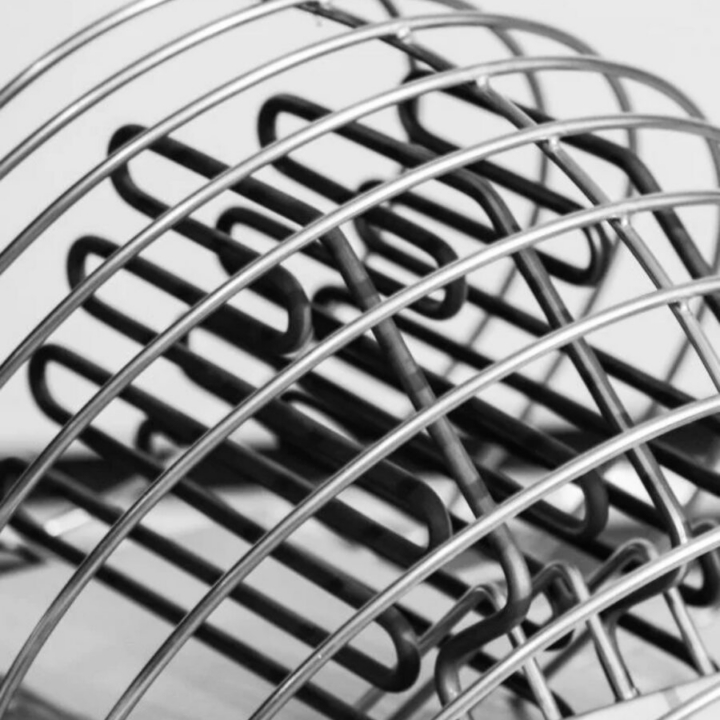

The amount of metal used in HUUM sauna heaters is very small – this ensures that the majority of the heat derives from the stones, and not from the metal. This maximizes the proportion of beneficial negative ions in the air, which is also high in the traditional wood-heated sauna.
This and the exceptionally large quantity of sauna rocks are the secret ingredients of the curative, gentle and long-lasting steam of our sauna heaters.
Learn more:
What happens to our body in and after the sauna?
