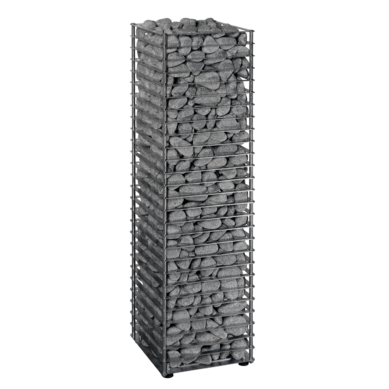

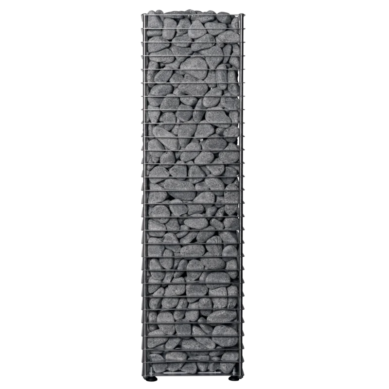

CLIFF 9

Electric sauna heaters

Specifications

Heater

  • Power rating (kW) 9
  • Steam room min (m³) 9
  • Steam room max (m³) 15
  • Holding capacity of sauna rocks (kg) 75
  • Weight (kg) 16
  • Height (mm) 975
  • Width (mm) 270
  • Depth (mm) 270

Connection

  • Fuse 16 A
  • Supply voltage, 3-phase 3/N~400V
  • Power cable (N x mm²) 5 x 2.5

230V 1N connection is analogous to a 3-phase connection. Division of heating circuits must precede the circuit breaker.

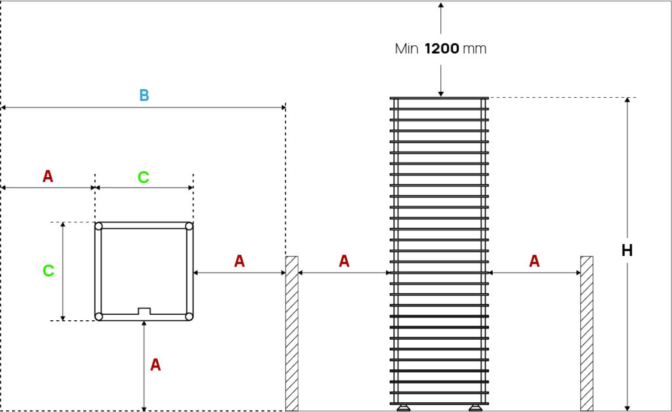

Safety distances

  • A 240 mm
  • B 750 mm
  • C 270 mm
  • H 975 mm
