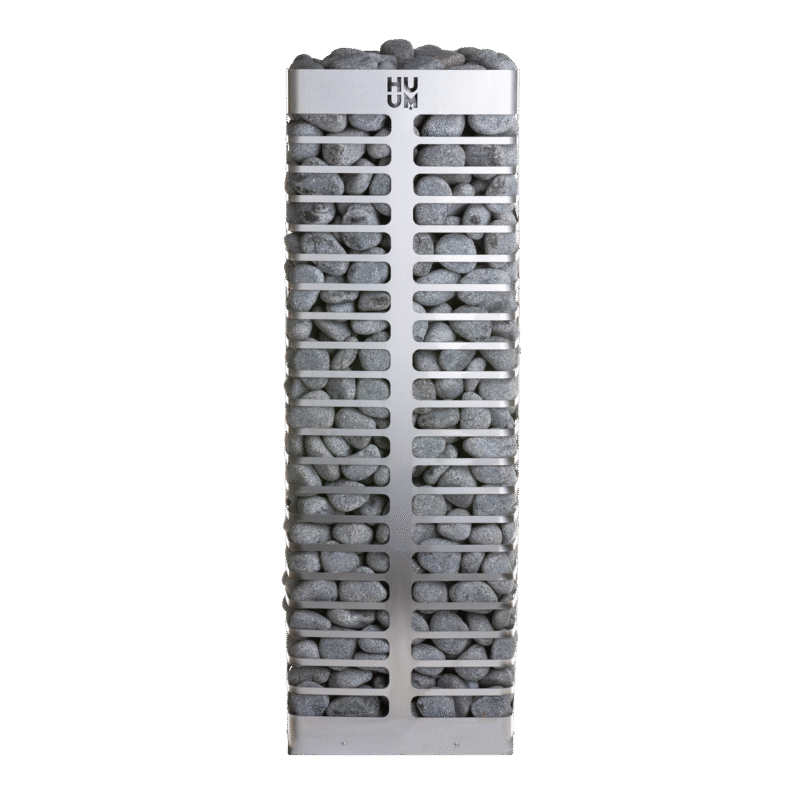

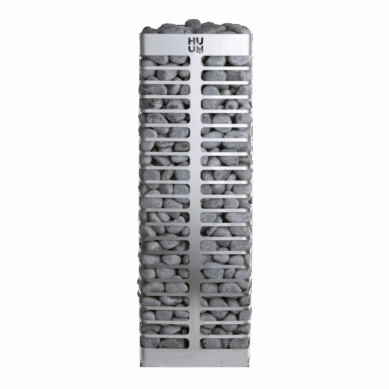

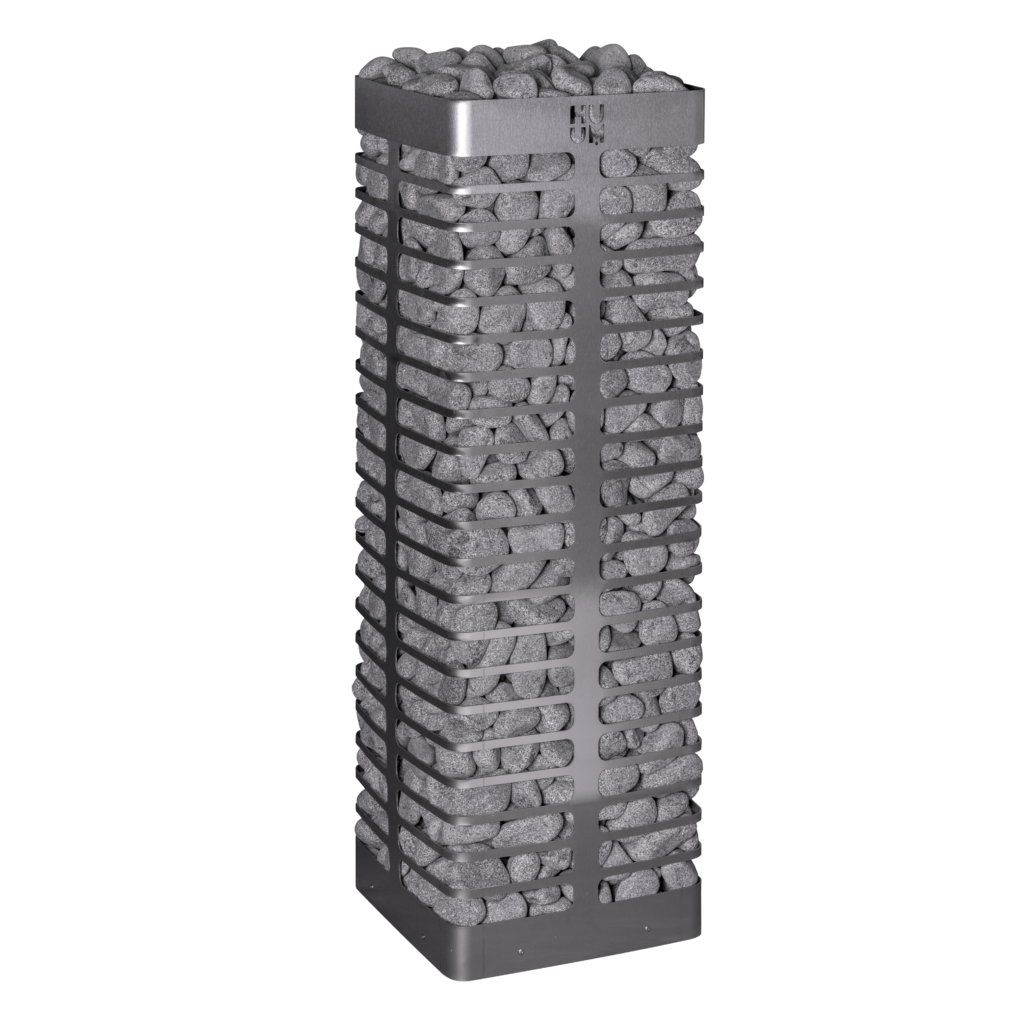

STEEL electric sauna heater
Electric sauna heaters
- Stylish and eye-catching design
- Mild and long-lasting steam
- Control with mobile app
- Warranty 5 years

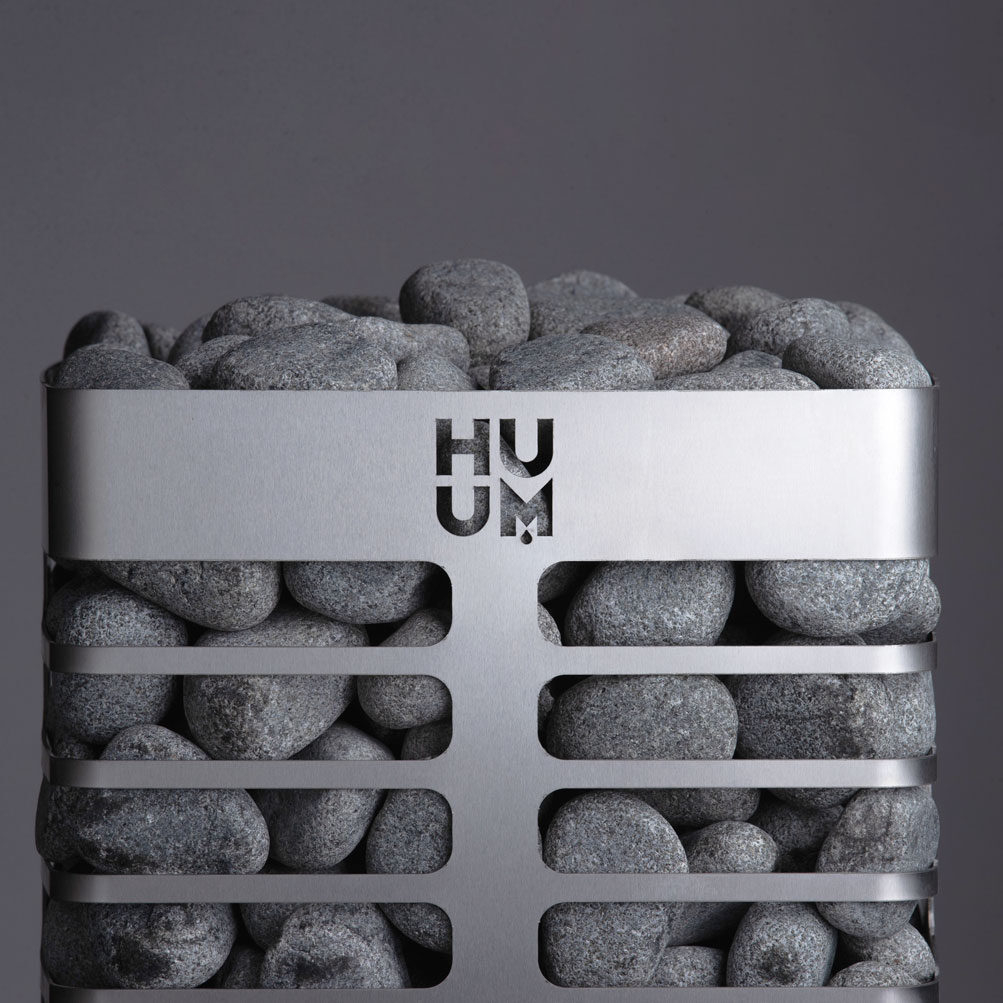

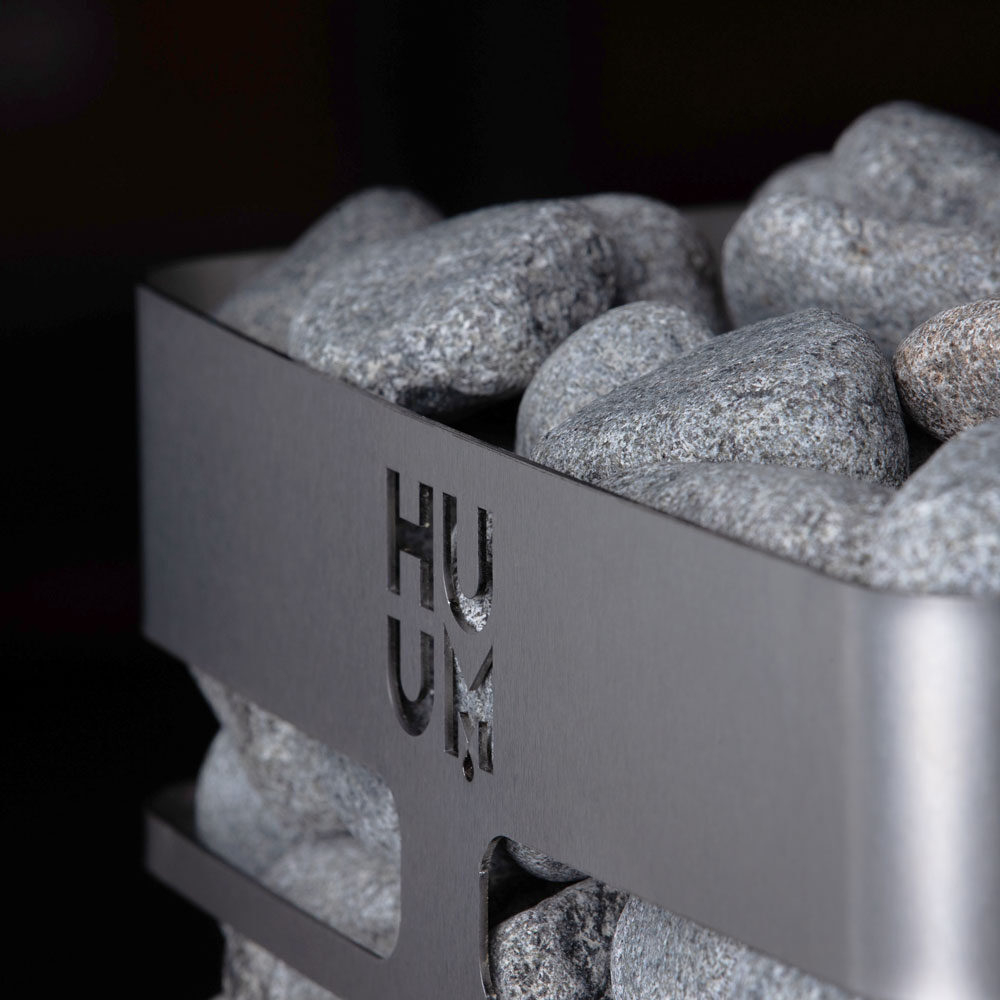

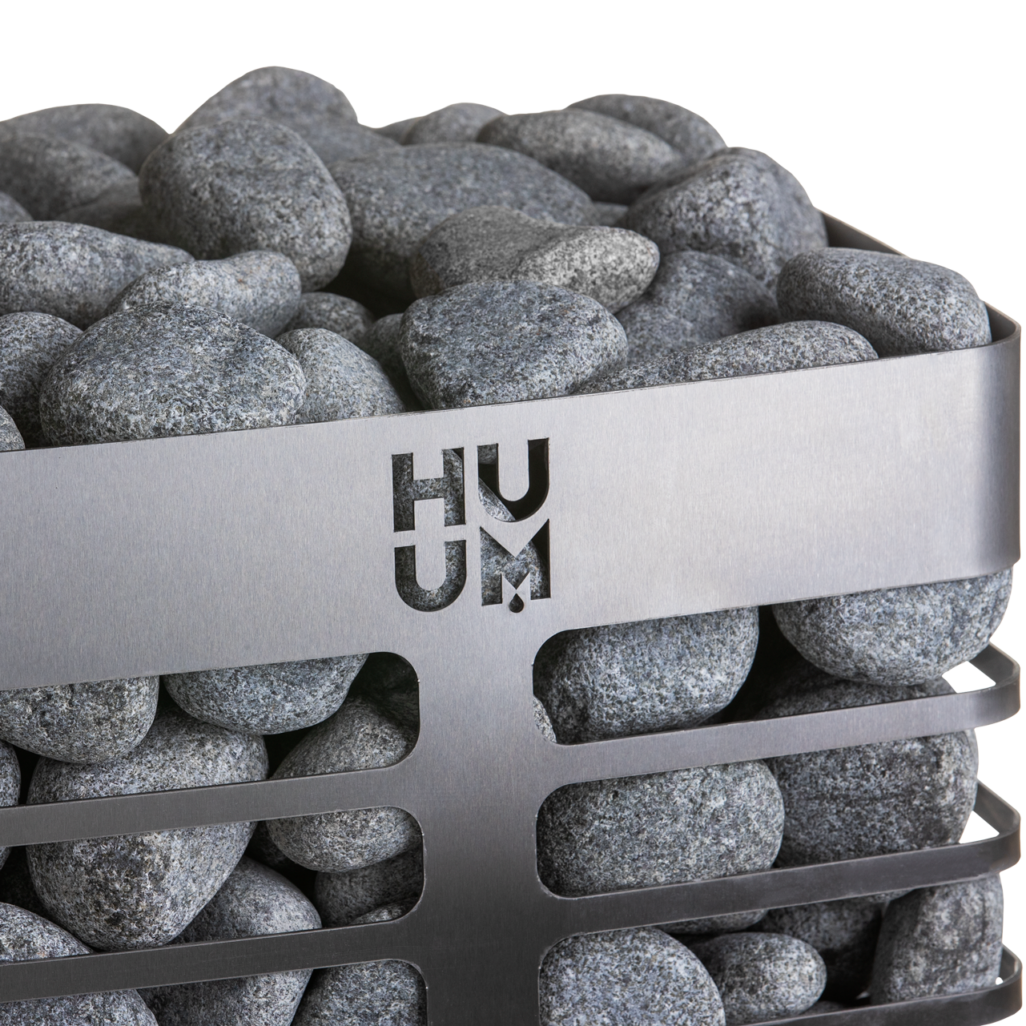

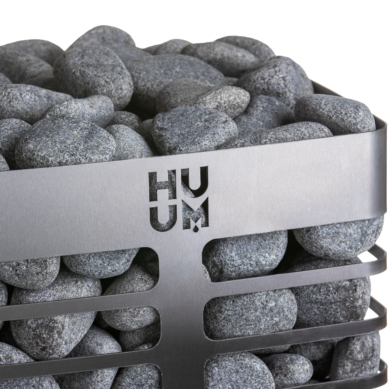

STEEL electric sauna heater is a classy and powerful pick for a modern home sauna. With a sleek design and small safety distances, this heater is perfect for compact steam rooms. But don’t let its slender shape mislead you – the built-in air tunnel ensures effective airflow and quick heating. Plus, the heater holds a large amount of sauna stones for gentle and long-lasting steam. And let’s not forget about its eye-catching stainless steel enclosure, which creates a stunning contrast with the natural sauna stones.
Specifications
Models
Heater
- Power rating (kW) 6
- Steam room min (m³) 6
- Steam room max (m³) 10
- Holding capacity of sauna rocks (kg) 150
- Weight (kg) 15
- Height (mm) 975
- Width (mm) 320
- Depth (mm) 320
Connection
- Fuse 10 A
- Supply voltage, 3-phase 3/N~400V
- Power cable (N x mm²) 5 x 1.5
230V 1N connection is analogous to a 3-phase connection. Division of heating circuits must precede the circuit breaker.

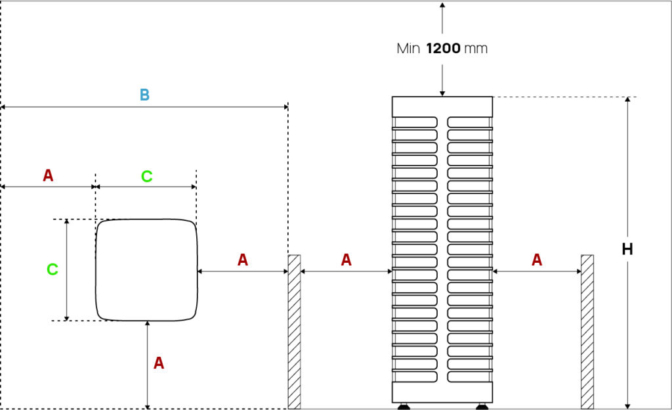

Safety distances
- A 50 mm
- B 420 mm
- C 320 mm
- H 975 mm
Heater
- Power rating (kW) 9
- Steam room min (m³) 9
- Steam room max (m³) 15
- Holding capacity of sauna rocks (kg) 150
- Weight (kg) 15
- Height (mm) 975
- Width (mm) 320
- Depth (mm) 320
Connection
- Fuse 16 A
- Supply voltage, 3-phase 3/N~400V
- Power cable (N x mm²) 5 x 2.5
230V 1N connection is analogous to a 3-phase connection. Division of heating circuits must precede the circuit breaker.
Safety distances
- A 100 mm
- B 520 mm
- C 320 mm
- H 975 mm
Heater
- Power rating (kW) 10,5
- Steam room min (m³) 10
- Steam room max (m³) 17
- Holding capacity of sauna rocks (kg) 150
- Weight (kg) 16
- Height (mm) 975
- Width (mm) 320
- Depth (mm) 320
Connection
- Fuse 16 A
- Supply voltage, 3-phase 3/N~400V
- Power cable (N x mm²) 5 x 2.5
230V 1N connection is analogous to a 3-phase connection. Division of heating circuits must precede the circuit breaker.
Safety distances
- A 100 mm
- B 520 mm
- C 320 mm
- H 975 mm
The set includes
Heater aditionally needs
- UKU sauna control system
- 150 kg of sauna stones with a diameter of 3–5 cm
- Heat-resistant power cable
Design options
- You can choose a control panel that suits the interior design of your sauna: GLASS, CLASSIC, or WOOD
- The UKU control system set already includes a black plastic control panel CLASSIC Black.

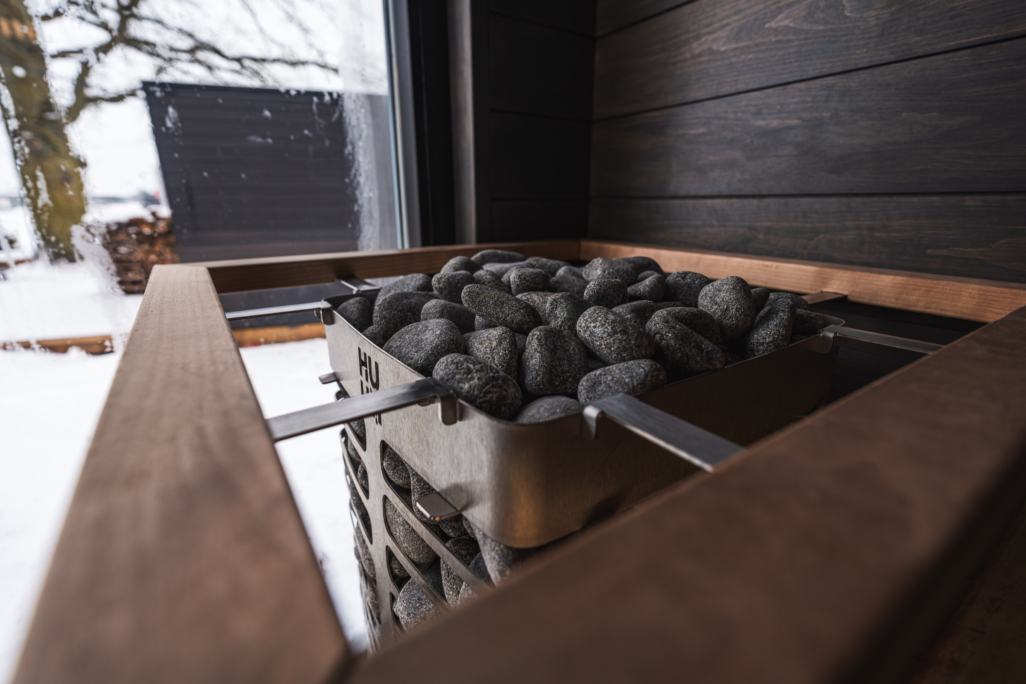

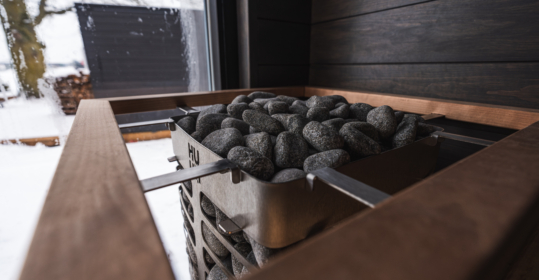

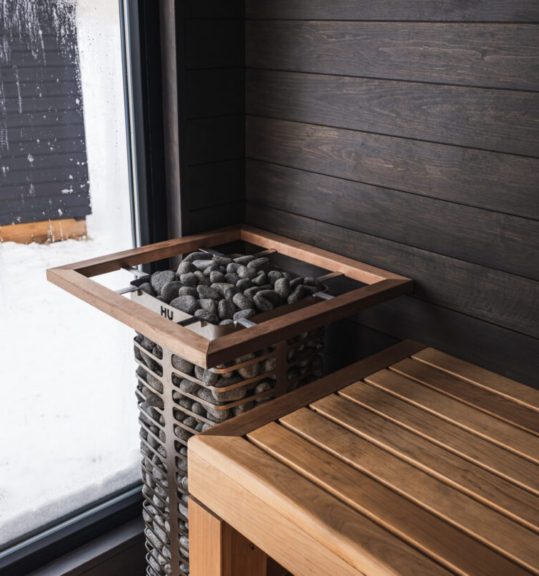

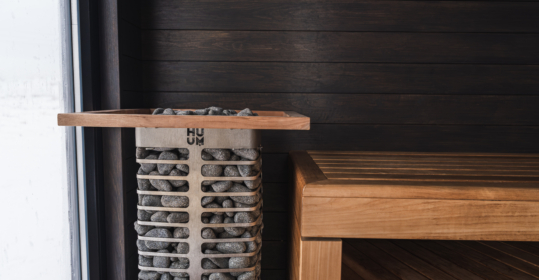

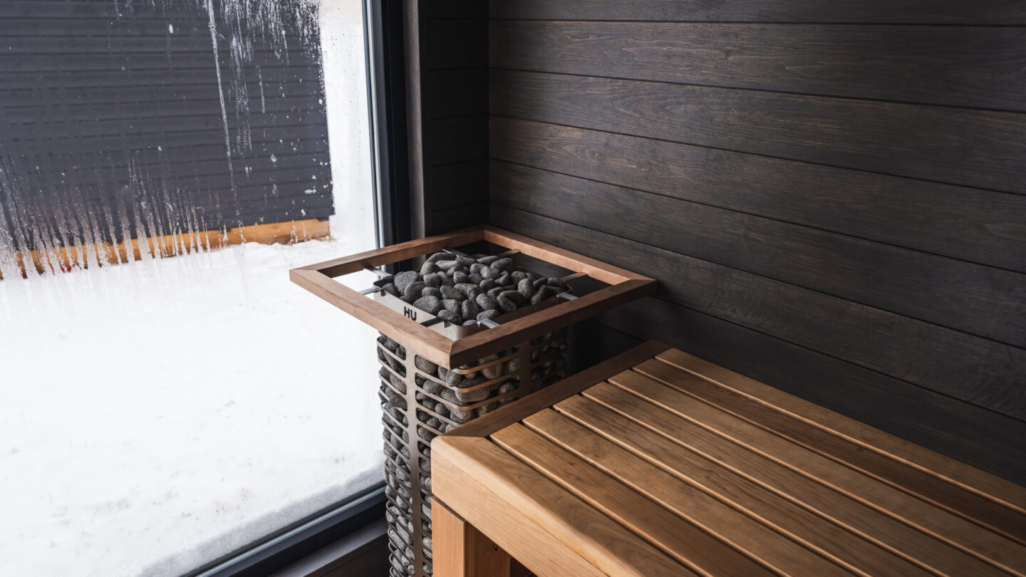

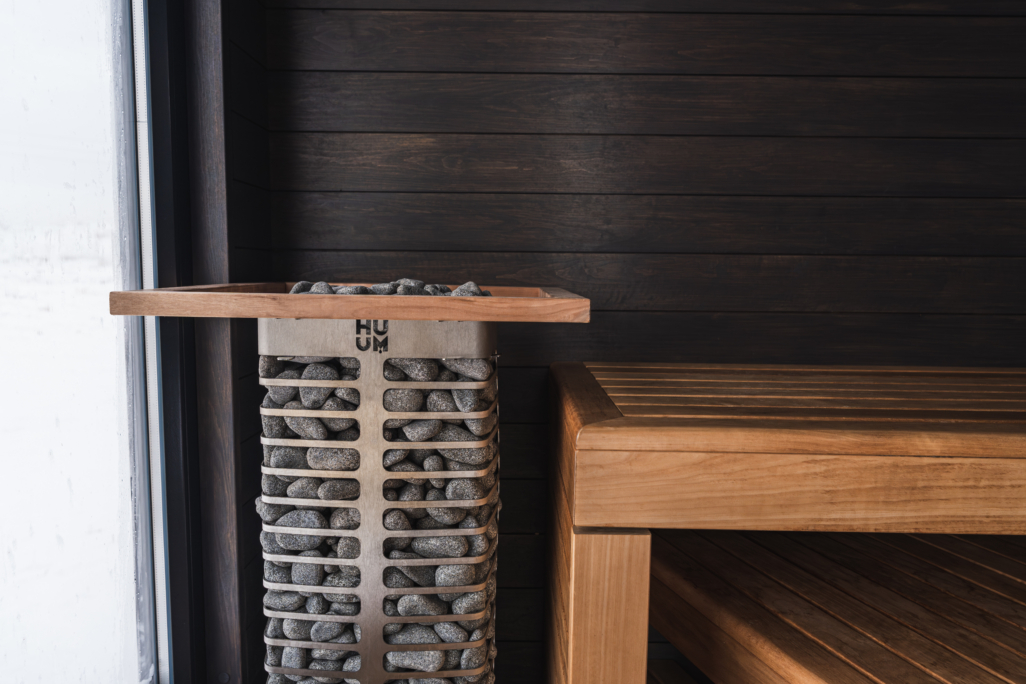

- The safety railing complements the design and adds safety.
- As a design option, STEEL electric sauna heater can be embedded into the sauna bench.
- When the heater is embedded, at least 550 mm of the heater should protrude from the sauna bench surface.
- Use the embedding flange of CLIFF/STEEL electric sauna heater to cover the cut rims of the opening.
Resources
-
HUUM STEEL Manual
2.09 MB -
HUUM STEEL DWG
0.09 MB -
HUUM STEEL OBJ
0.63 MB -
HUUM STEEL SKP
140.64 MB -
HUUM STEEL IFC
20.26 MB -
HUUM STEEL 3DS
19.13 MB
Easy to use
Soft steam
Long-lasting relaxation
Stainless steel
CE certificate
Safety and control
Made in Estonia
Heater for modern home saunas
STEEL electric sauna heater has been developed for contemporary apartment saunas. Its small dimensions and powerful construction provide a stylish supplement to the interior. The sauna heater is compatible with the UKU sauna control system, which enables you to heat the sauna irrespective of where you are.

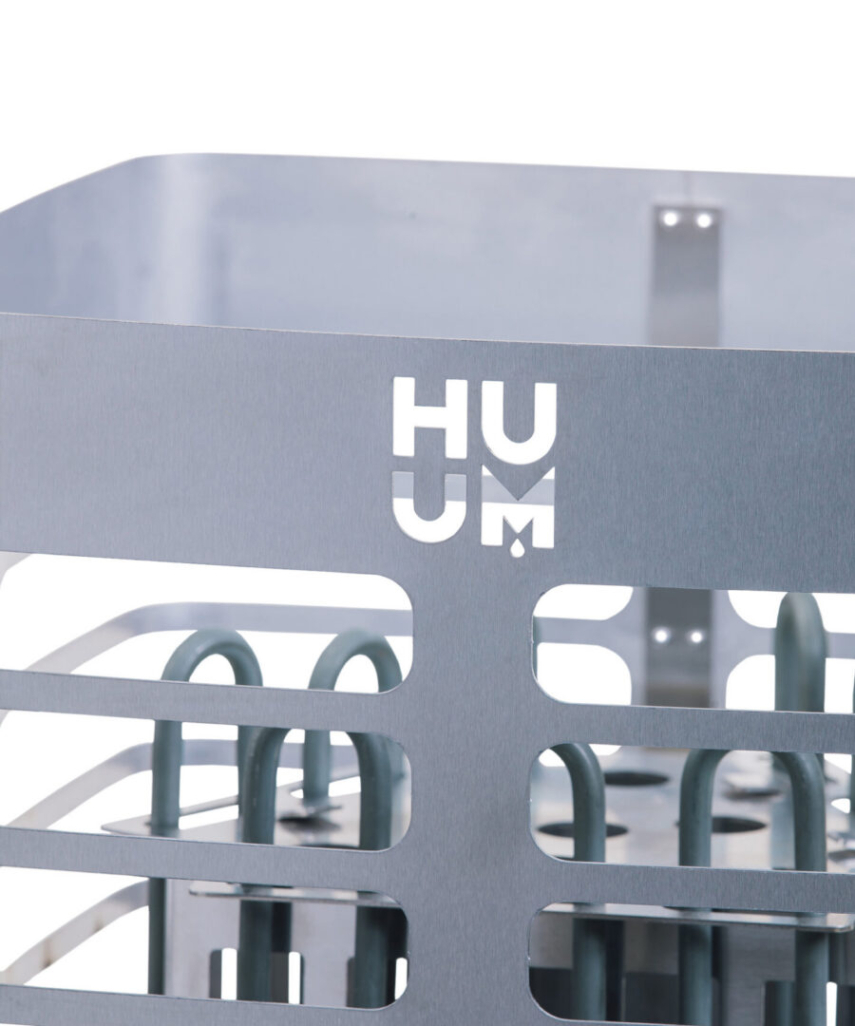

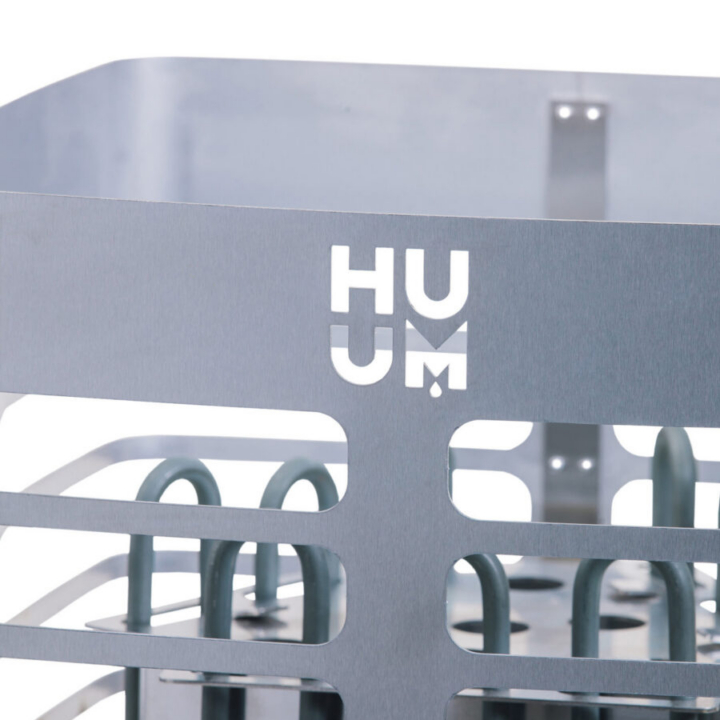

The optimized construction of the STEEL sauna heater means small safety distances. Its internal air tunnel ensures effective air flow and expedites sauna heating by 25%. In addition, it prolongs the useful life of the heating elements. According to the experts, you’ll need 50 kg of sauna stones for mild steam. STEEL electric sauna heater holds as much as 150 kg of stones, and the wall-mountable STEEL Mini fits 60 kg of sauna stones.
Made in Estonia
STEEL and CLIFF sauna heaters that have minimized the ecological footprint
STEEL electric sauna heaters form an inseparable pair with the award-winning CLIFF electric sauna heaters. One could not exist without the other. These two sauna heaters are produced from the same stainless steel sheet. The fins of CLIFF sauna heaters are made from the cutouts of STEEL sauna heaters, which ensures that all material is utilized and there is no excessive waste.
Our daily mission is to employ environment-friendly production methods, so that we can hand nature in its current beauty down to future generations.
