HIVE Wood burning stove
Wood burning sauna stoves

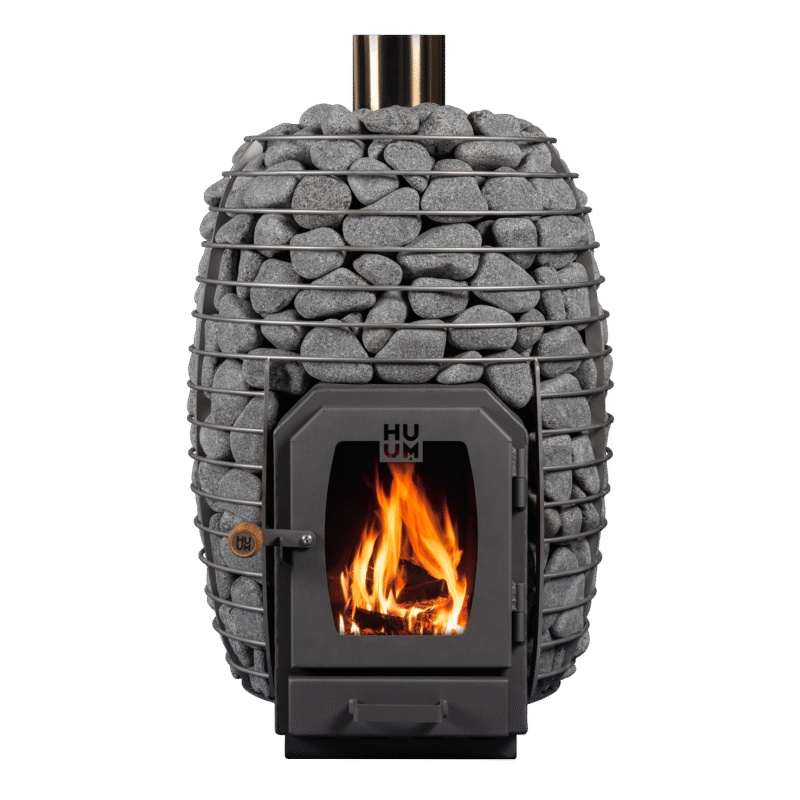

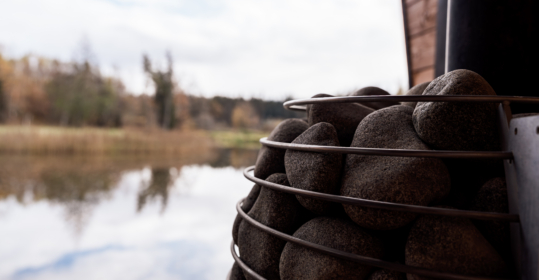

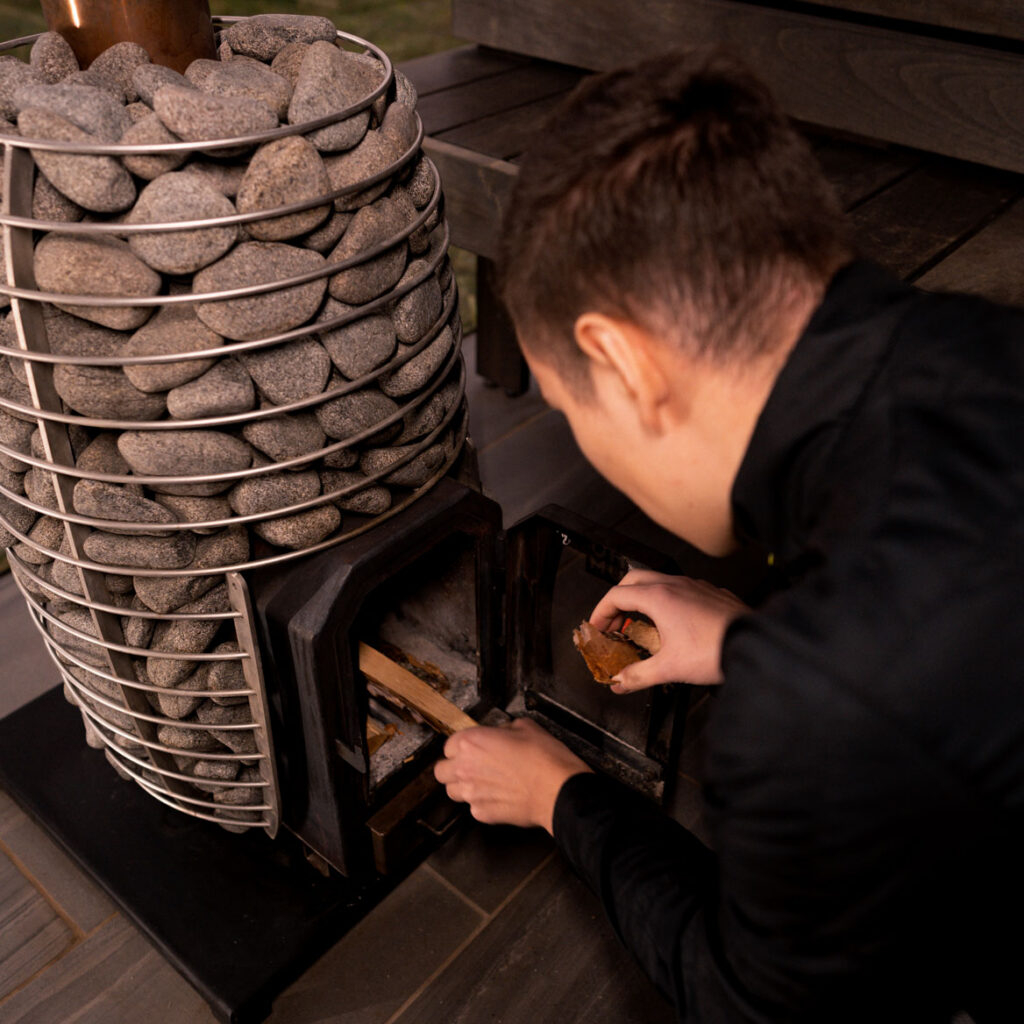

HIVE Wood burning stove is a modern take on traditional sauna building. With its elegant round design, it’s both powerful and durable. The furnace is well-constructed to ensure an efficient burning and forceful flame. The flame tamer inside the stove is made of 5 mm stainless steel and can withstand the highest temperatures. Additionally, a heat exchanger can be mounted below the sauna stones to heat water while the wood is burning. The LS model of the HIVE Wood burning stove even allows heating the sauna from an adjacent room.
Outstanding features:

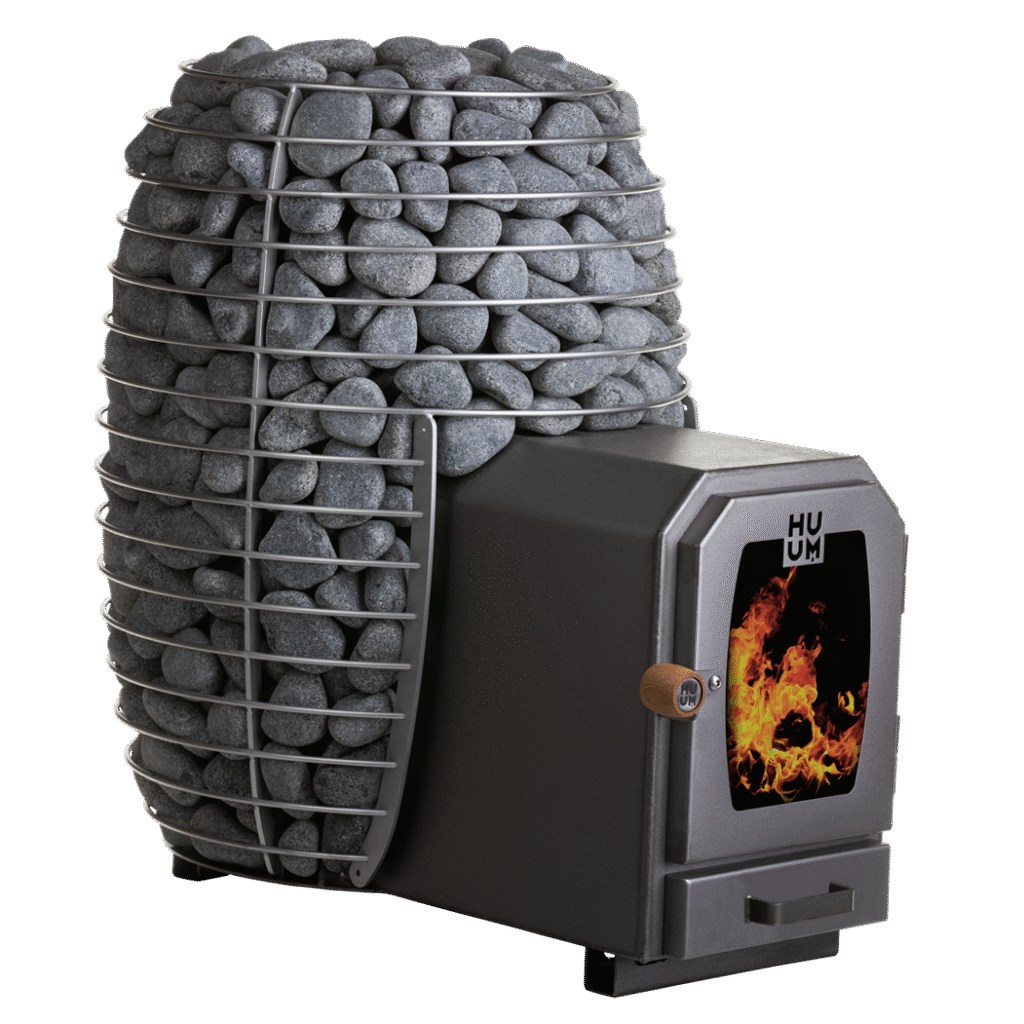

- Model 17 LS allows heating the sauna from an adjacent room
- the unique construction ensures the efficiency of the burning process
- treated solely with natural oils
- the warranty period of 5 years
Specifications
Models
Heater
- Power rating (kW) 13
- Steam room min (m³) 6
- Steam room max (m³) 13
- Holding capacity of sauna rocks (kg) 90
- Weight (kg) 47
- Height (mm) 750
- Width (mm) 450
- Depth (mm) 460
- Firewood length (mm) 300
- Diameter of the flue (mm) 115

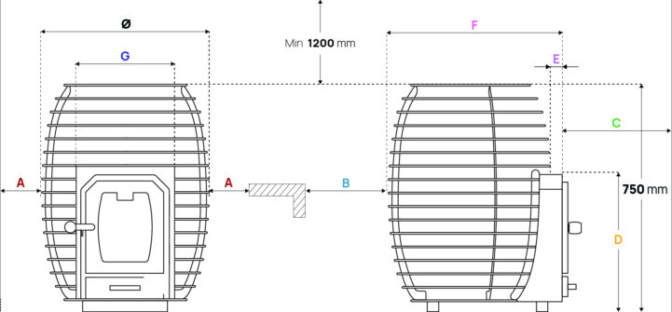

Safety distances
- A 190 mm
- B 250 mm
- C 900 mm
- D 425 mm
- E 5 mm
- F 460 mm
- G 240 mm
- Ø 450 mm
Heater
- Power rating (kW) 17
- Steam room min (m³) 8
- Steam room max (m³) 16
- Holding capacity of sauna rocks (kg) 130
- Weight (kg) 65
- Height (mm) 750
- Width (mm) 555
- Depth (mm) 590
- Firewood length (mm) 400
- Diameter of the flue (mm) 115
Safety distances
- A 500 mm
- B 500 mm
- C 1000 mm
- D 460 mm
- E 35 mm
- F 590 mm
- G 300 mm
- Ø 555 mm
Heater
- Power rating (kW) 17
- Steam room min (m³) 8
- Steam room max (m³) 16
- Holding capacity of sauna rocks (kg) 130
- Weight (kg) 77
- Height (mm) 750
- Width (mm) 555
- Depth (mm) 740
- Firewood length (mm) 400
- Diameter of the flue (mm) 115
Safety distances
- A 500 mm
- B 500 mm
- C 1000 mm
- D 460 mm
- E 185 mm
- F 740 mm
- G 300 mm
- Ø 555 mm
The set includes
Heater additionally needs
- HIVE Wood 13 requires 90 kg of sauna rocks with a diameter of 5–10 cm
- HIVE Wood 17 requires 135 kg of sauna rocks with the diameter of 5–10 cm
- Connection with the chimney
Resources
-
HUUM HIVE WOOD Manual
1.28 MB -
HUUM HIVE Wood 13 dwg
0.30 MB -
HUUM HIVE Wood 17 dwg
0.51 MB -

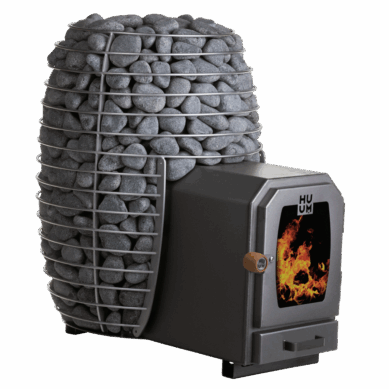

HUUM HIVE Wood 17 LS dwg
0.52 MB -
HUUM HIVE WOOD 13 3D
5.44 MB -
HUUM HIVE WOOD 17 3D
3.24 MB -
HUUM HIVE WOOD 17 LS 3D
3.34 MB
Easy to use
Soft steam
Long-lasting relaxation
Stainless steel
CE certificate
Safety and control
Made in Estonia
Sauna heaters that provide a mild steam

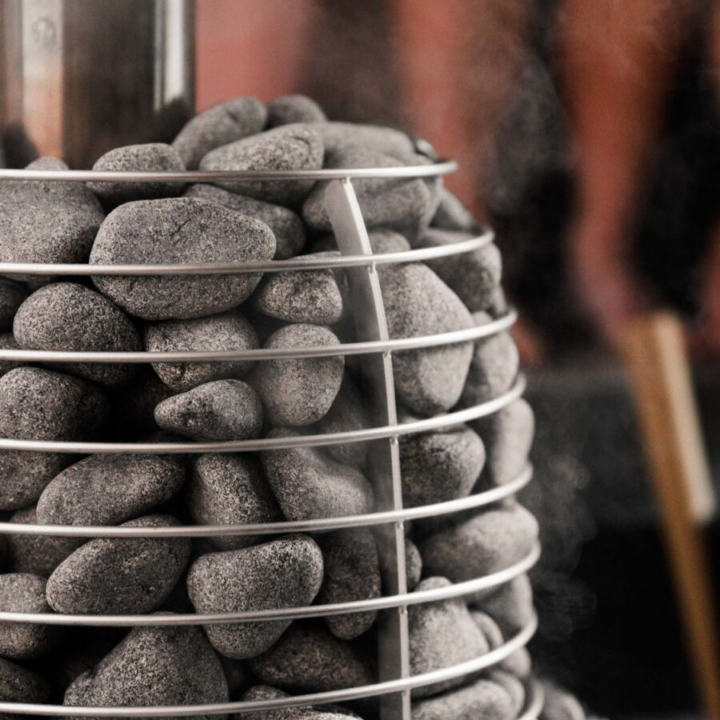

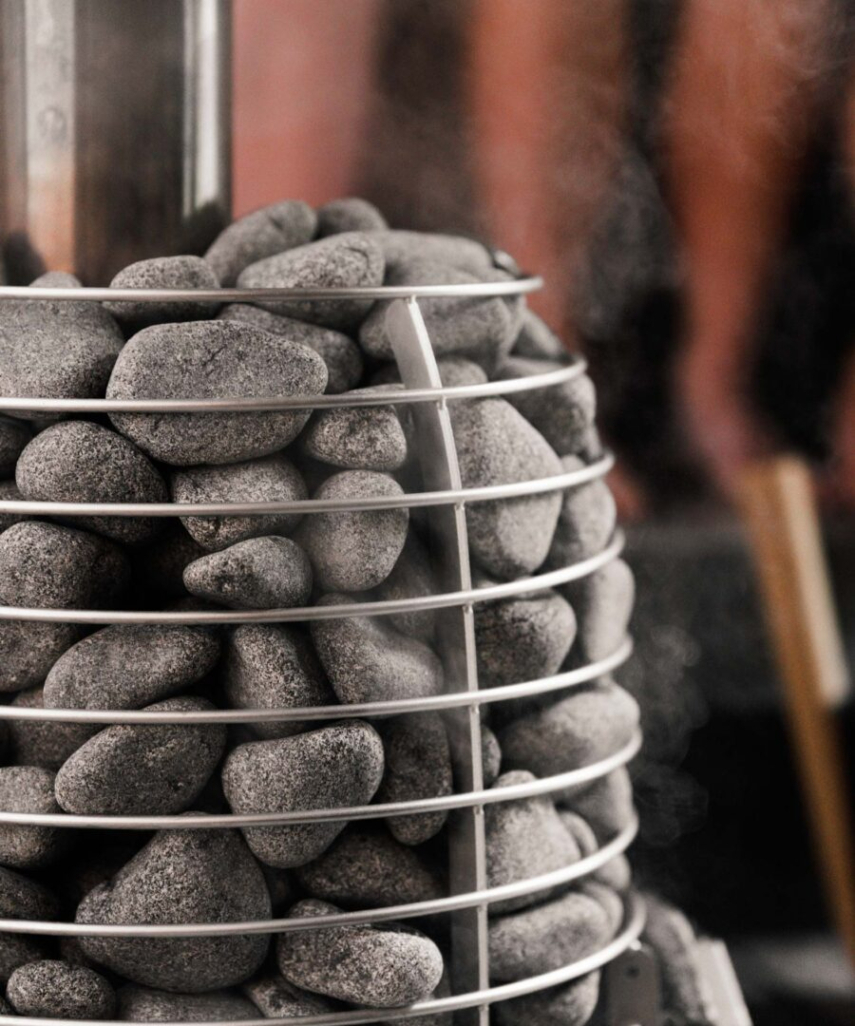

The amount of metal used in HUUM sauna heaters is very small – this ensures that majority of the heat derives from the stones, and not from the metal. This maximizes the proportion of beneficial negative ions in the air. Negative ions are also called “vitamins of the air”. The amount of negative ions is high, for example, in traditional wood-fired saunas and natural water bodies.
Negative ions and the exceptionally large quantity of sauna stones are the secret ingredients of the curative, gentle and long-lasting steam of our sauna heaters.
