HIVE Mini electric sauna heater
Electric sauna heaters
- Stone-emphasizing design
- Mild and long-lasting steam
- Control with mobile app
- Warranty 5 years

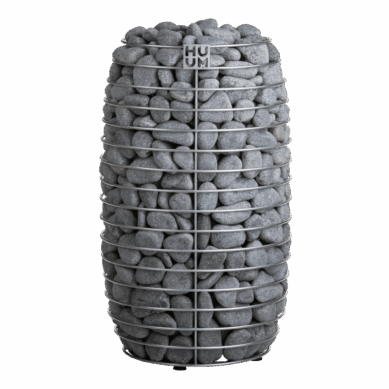

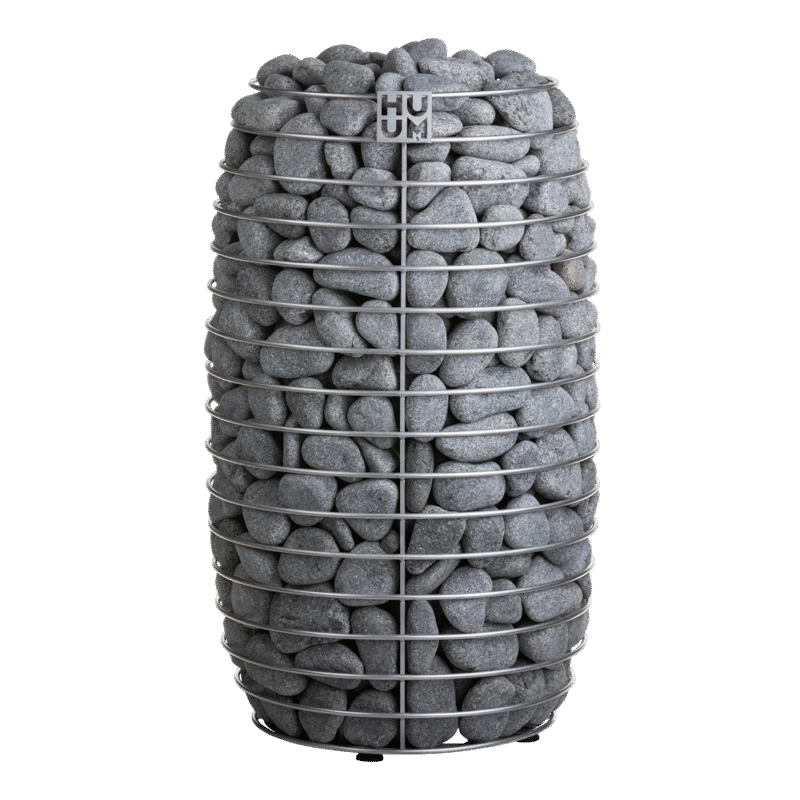

HIVE Mini electric sauna heater is a smaller version of the popular HIVE sauna heater, perfect for slightly smaller saunas. With its round and majestic design, this sauna heater can still hold up to 150 kg of sauna stones, ensuring long-lasting and mild steam for sauna-goers. The details of the heater are made of durable stainless steel. Its compact size doesn’t compromise on performance, making it a great option for those who want a high-quality sauna experience without needing a larger heater.
Specifications
Models
Heater
- Power rating 6 kW
- Steam room min 5 m³
- Steam room max 9 m³
- Holding capacity of sauna rocks 150 kg
- Weight 16 kg
- Height 750 mm
- Diameter 460 mm
Connection
- Fuse 10 A
- Supply voltage, 3-phase 3/N~400 V
- Power cable (N x mm²) 5 x 2.5
230V 1N connection is analogous to a 3-phase connection. Division of heating circuits must precede the circuit breaker.

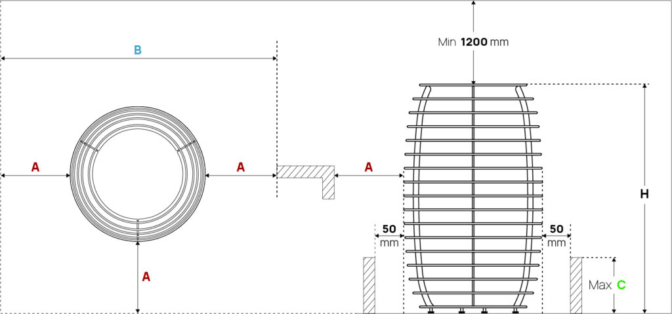

Safety distances
- A 60 mm
- B 580 mm
- C 400 mm
- H 750 mm
Heater
- Power rating 9 kW
- Steam room min 8 m³
- Steam room max 13 m³
- Holding capacity of sauna rocks 150 kg
- Weight 18 kg
- Height 750 mm
- Diameter 460 mm
Connection
- Fuse 16 A
- Supply voltage, 3-phase 3/N~400 V
- Power cable (N x mm²) 5 x 2.5
230V 1N connection is analogous to a 3-phase connection. Division of heating circuits must precede the circuit breaker.
Safety distances
- A 90 mm
- B 640 mm
- C 400 mm
- H 750 mm
Heater
- Power rating 10,5 kW
- Steam room min 10 m³
- Steam room max 16 m³
- Holding capacity of sauna rocks 150 kg
- Weight 18 kg
- Height 750 mm
- Diameter 460 mm
Connection
- Fuse 16 A
- Supply voltage, 3-phase 3/N~400 V
- Power cable (N x mm²) 5 x 2.5
230V 1N connection is analogous to a 3-phase connection. Division of heating circuits must precede the circuit breaker.
Safety distances
- A 110 mm
- B 680 mm
- C 400 mm
- H 750 mm
Heater
- Power rating (kW) 6
- Steam room min (m³) 5
- Steam room max (m³) 9
- Holding capacity of sauna rocks (kg) 140
- Weight (kg) 16
- Height (mm) 750
- Diameter (mm) 460
Connection
- Fuse 10 A
- Supply voltage, 3-phase 3/N~400 V
- Power cable (N x mm²) 5 x 2.5
230V 1N connection is analogous to a 3-phase connection. Division of heating circuits must precede the circuit breaker.
Safety distances
- A 60 mm
- B 580 mm
- C 400 mm
- H 750 mm
The set includes
Heater aditionally needs
- UKU sauna control system
- 150 kg of sauna stones with the diameter of 5–10 cm
- Heat-resistant power cable
Design options
- You can choose a control panel that suits the interior design of your sauna: GLASS, CLASSIC, or WOOD
- The UKU control system set already includes a black plastic control panel CLASSIC Black.

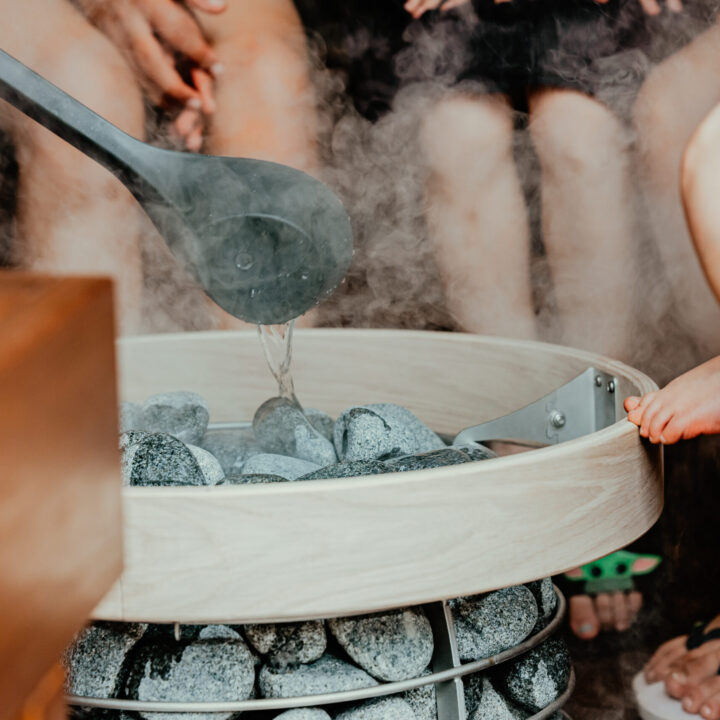

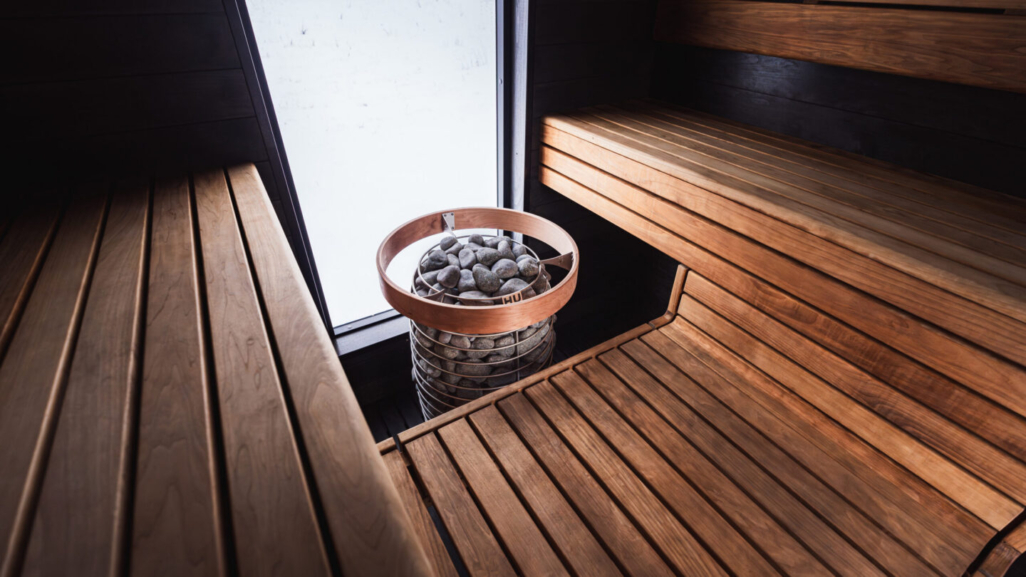

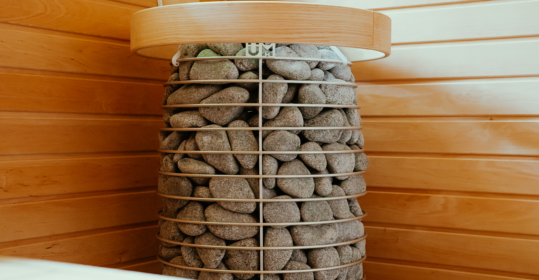

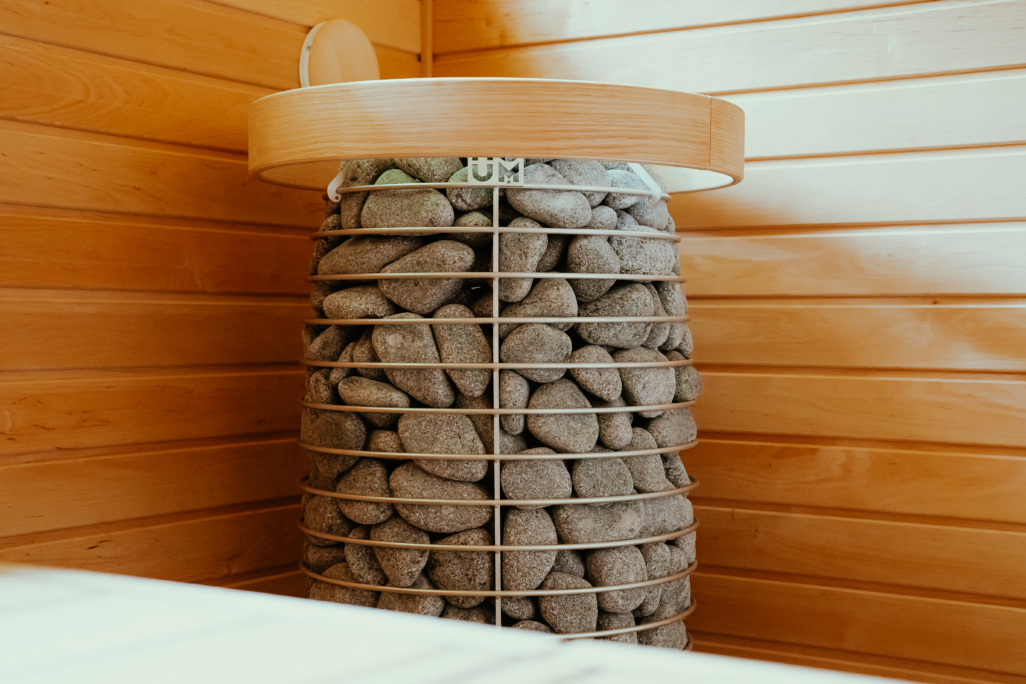

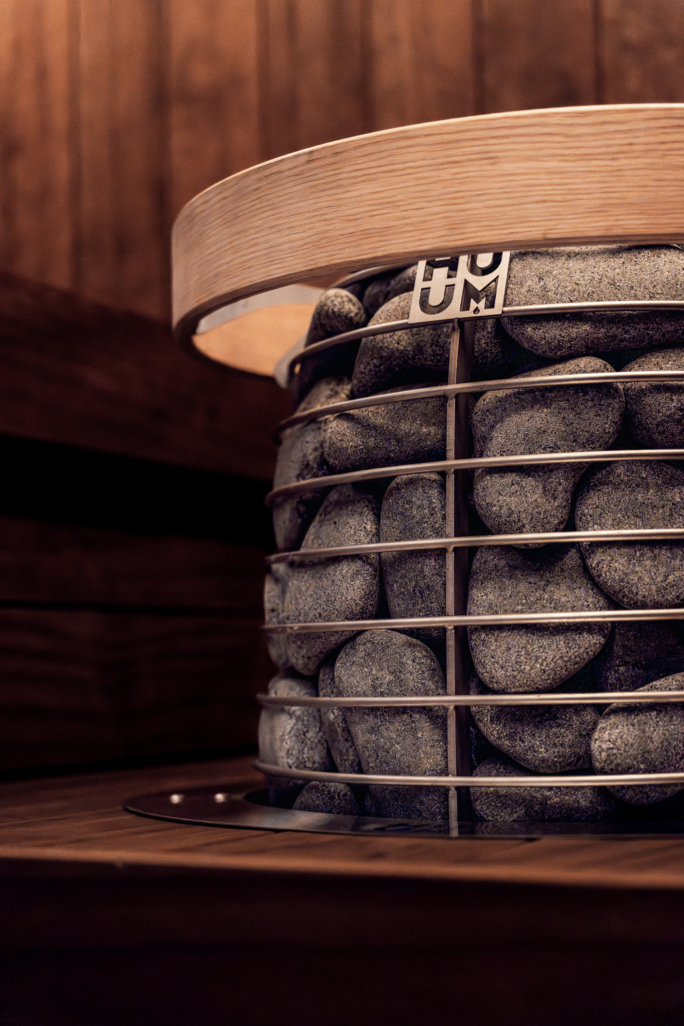

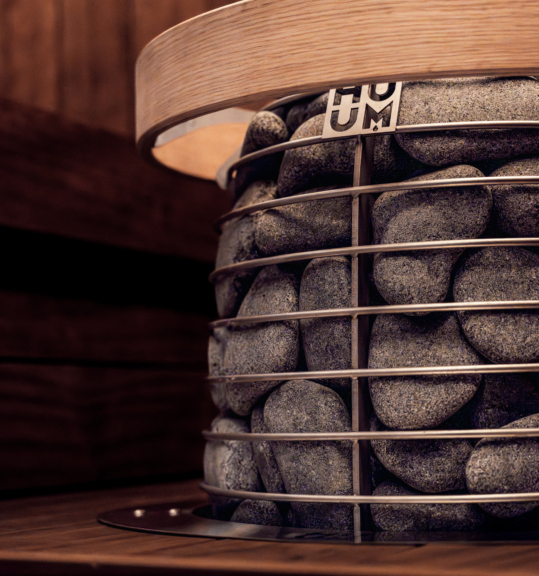

- The safety railing with wooden arches complements the design and adds safety.

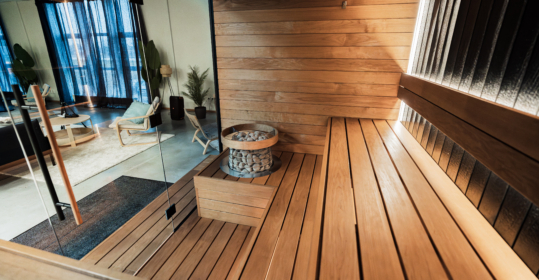

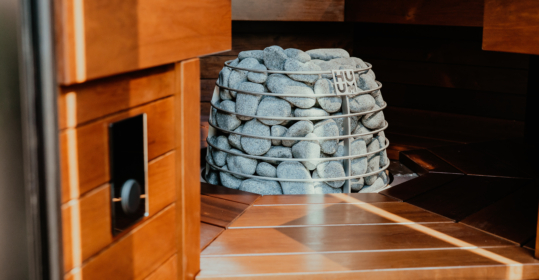

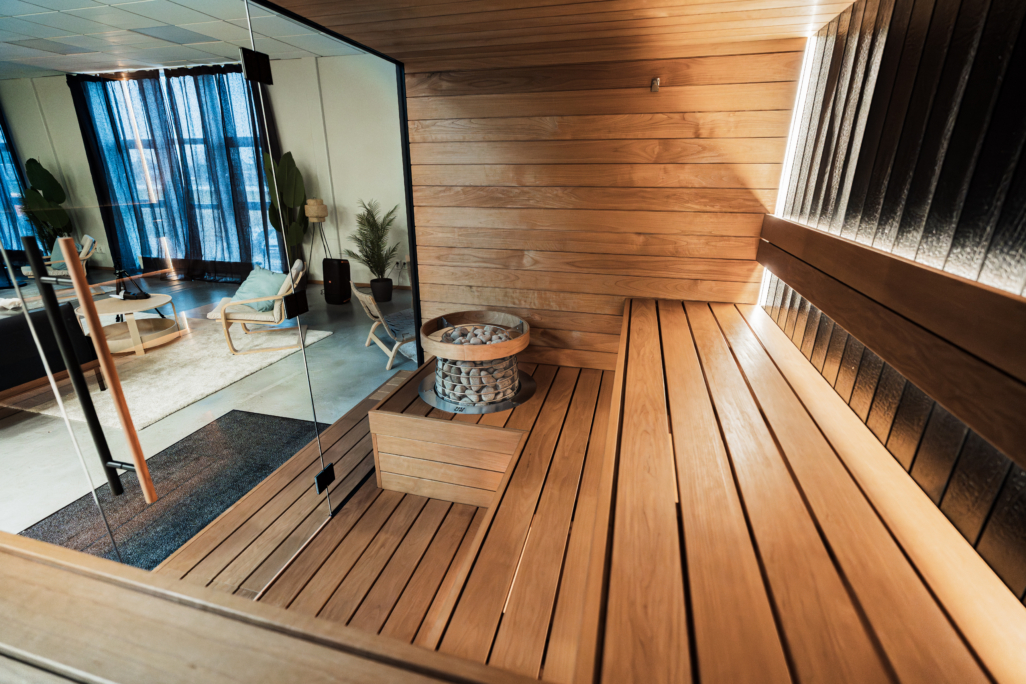

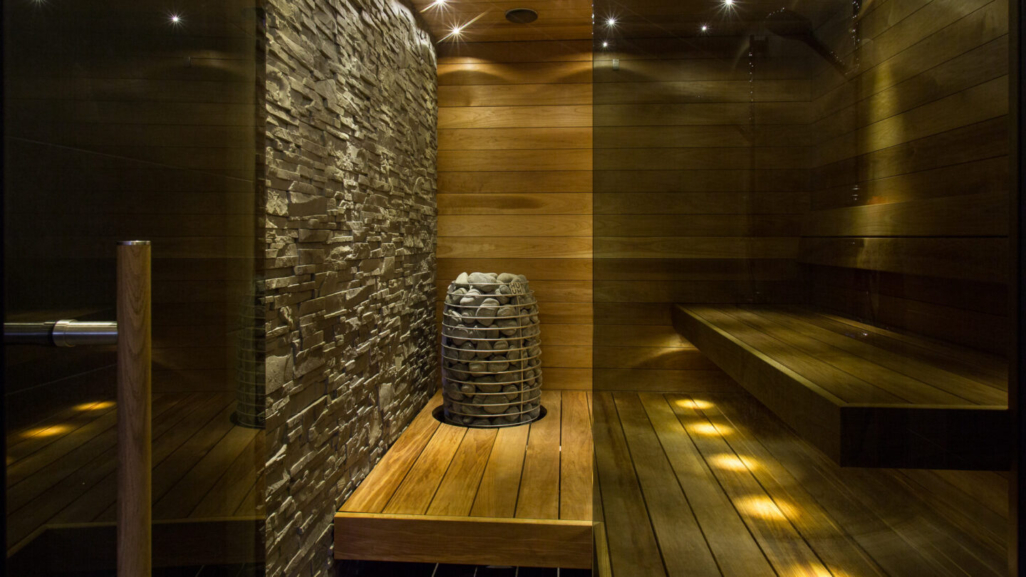

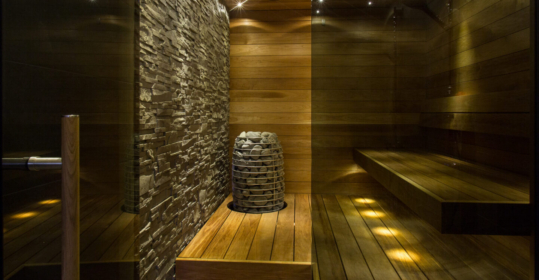

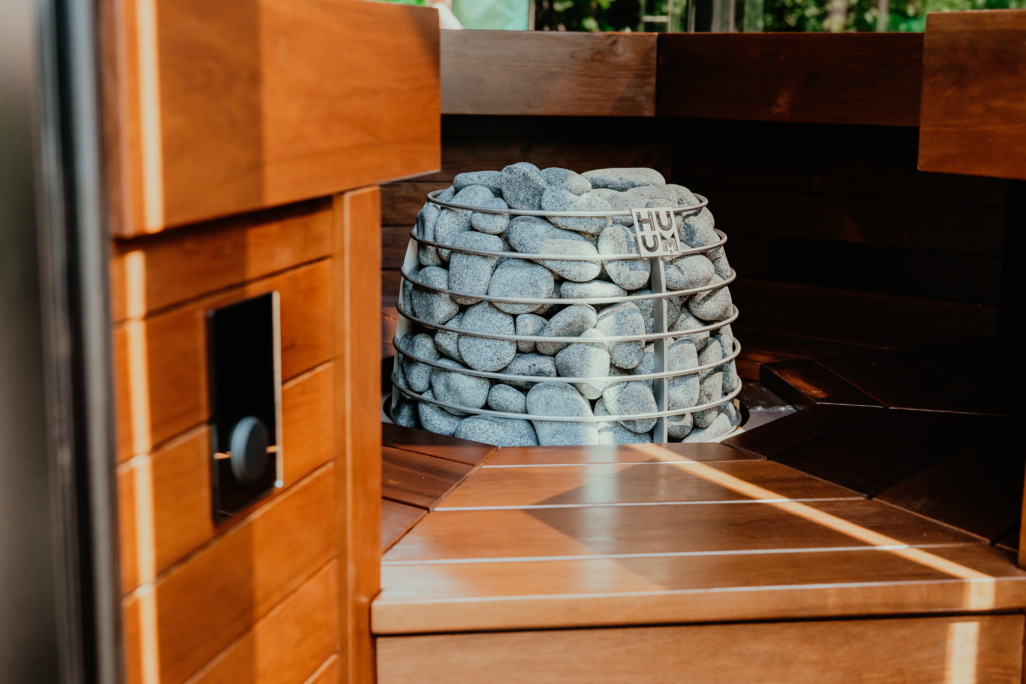

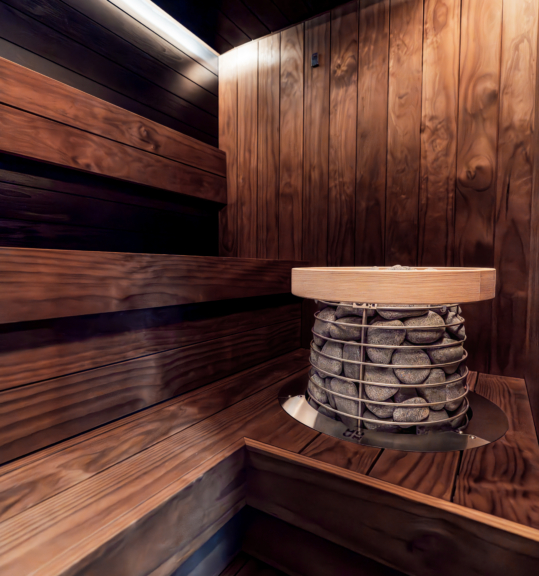

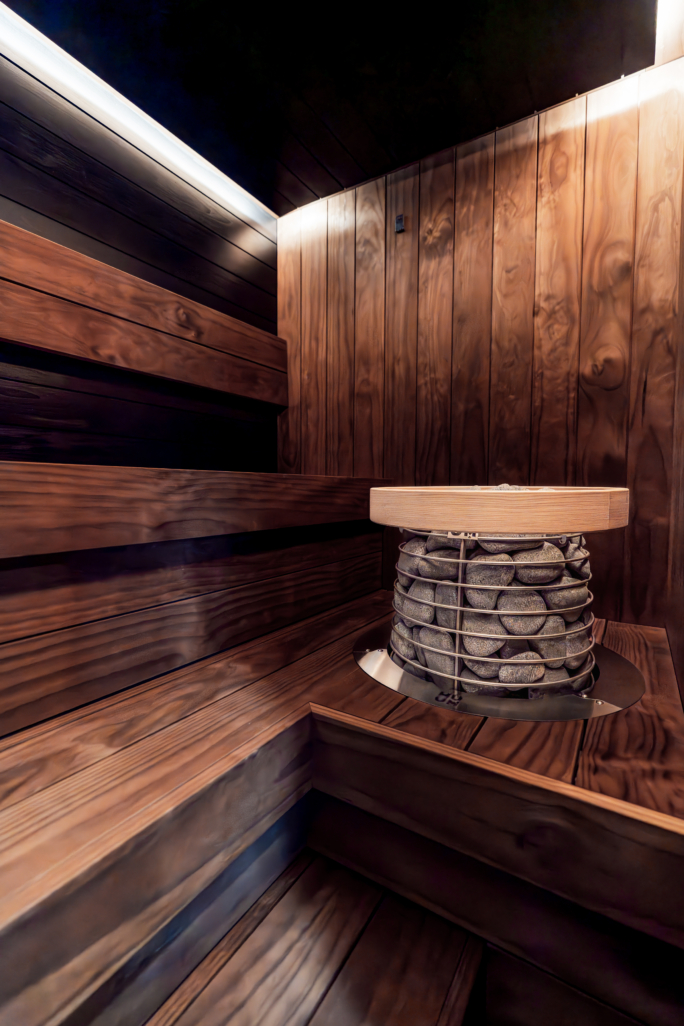

- As a design option, HIVE Mini electric sauna heater can be embedded into the sauna bench.
- When the heater is embedded, at least 350 mm of the heater should protrude from the sauna bench surface.
- Use the embedding flange of the HIVE electric sauna heater to cover the cut rims of the opening.
Resources
-
HUUM HIVE Manual
1.47 MB -
HUUM HIVE Mini DWG
0.13 MB -
HUUM HIVE Mini OBJ
3.37 MB -
HUUM HIVE Mini SKP
82.24 MB -
HUUM HIVE Mini IFC
16.03 MB -
HUUM HIVE Mini 3DS
12.97 MB -
HUUM HIVE Mini With Safety Railing SKP
91.45 MB -
HUUM HIVE MINI With Safety Railing IFC
17.81 MB -
HUUM HIVE Mini With Safety Railing 3DS
14.81 MB
Smart control system
Soft steam
Long-lasting relaxation

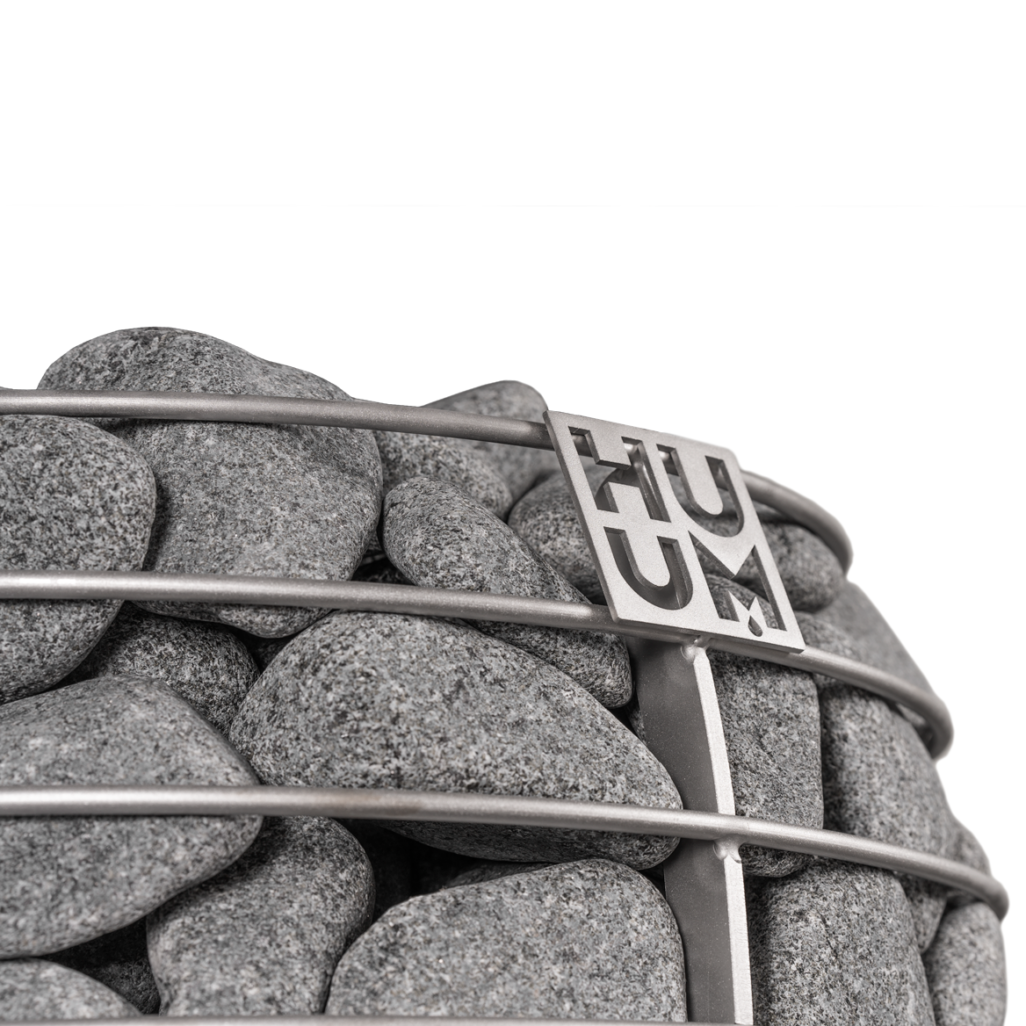

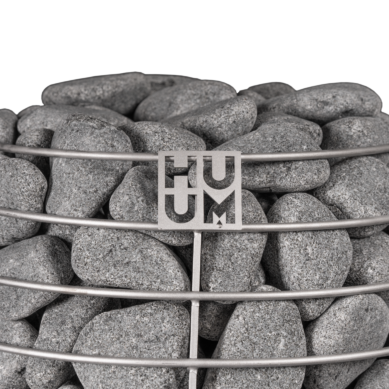

Stainless steel
CE certificate
UKCA certificate
Made in Estonia
HUUM app enables one to heat the sauna from a smartphone
HUUM mobile app allows you to heat the sauna from your phone, wherever you are. It doesn’t matter whether you are heading home from the office, finishing your evening jog or simply wish to have an unplanned rewarding sauna evening with your friends – just a few clicks on the smartphone, and a hot sauna awaits you!
Nature-inspired shapes

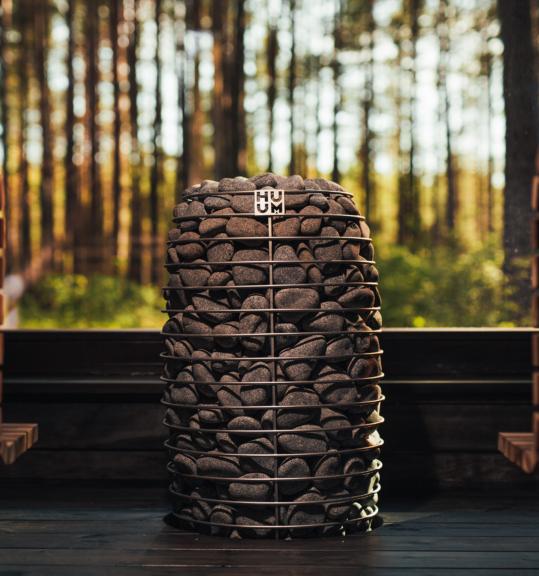

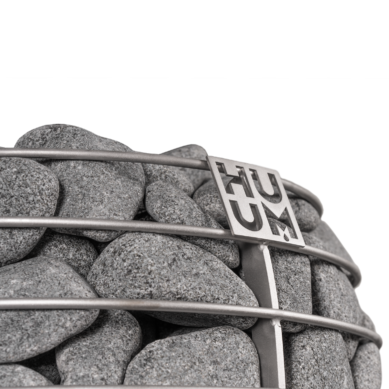

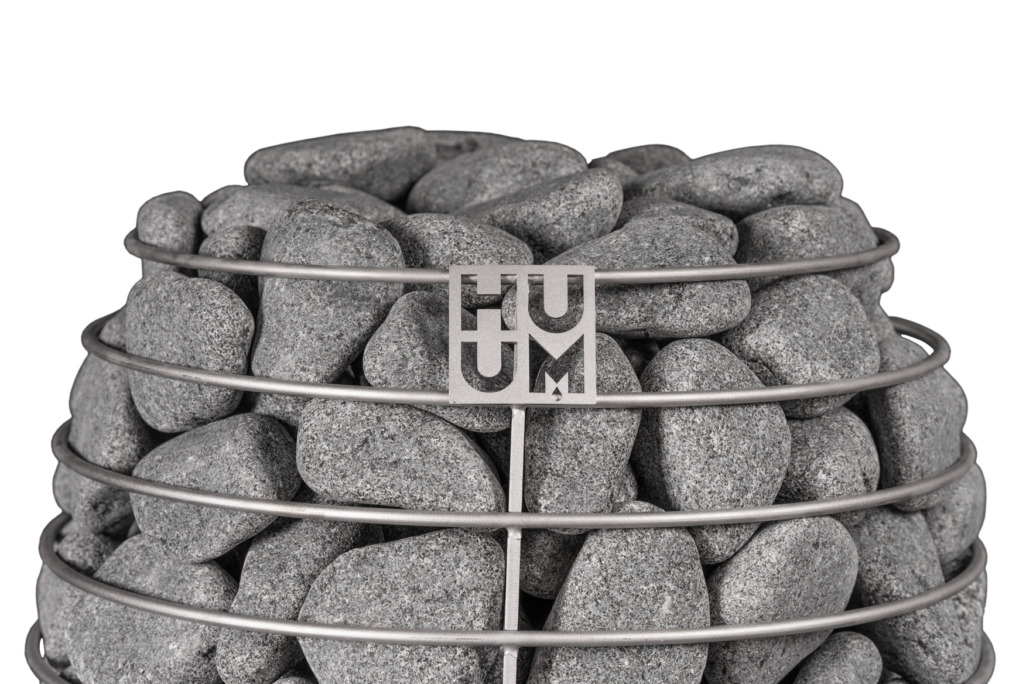

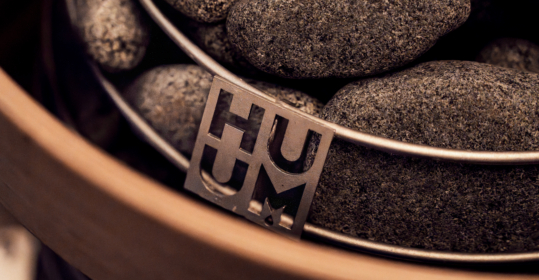

Round form of HIVE sauna heater imitates the hive of wild bees. Stainless steel arcs surround the sauna stones with pure elegance and accentuate their natural beauty.
HIVE sauna heater represents the copious warmth of Nordic sauna that unites people. It is the heart and the focal point of the sauna. It’s pure pleasure to share stories and the authentic sauna experience beside it!
Made in Estonia
Soft steam that resembles the traditional sauna
The amount of metal used in HUUM sauna heaters is very small – this ensures that majority of the heat derives from the stones, and not from the metal. This maximizes the proportion of beneficial negative ions in the air, which is also high in the traditional wood-heated sauna.
This and the exceptionally large quantity of sauna rocks are the secret ingredients of the curative, gentle and long-lasting steam of our sauna heaters.
