DROP 9

Electric sauna heaters

Specifications
Metric Imperial

Heater

  • Power rating (kW) 9
  • Steam room min (m³) 8
  • Steam room max (m³) 15
  • Holding capacity of sauna rocks (kg) 55
  • Weight (kg) 11
  • Height (mm) 590
  • Width (mm) 390
  • Depth (mm) 335

Connection

  • Fuse 16 A
  • Supply voltage, 3-phase 3/N~400V
  • Power cable (N x mm²) 5 x 2.5

230V 1N connection is analogous to a 3-phase connection. Division of heating circuits must precede the circuit breaker.

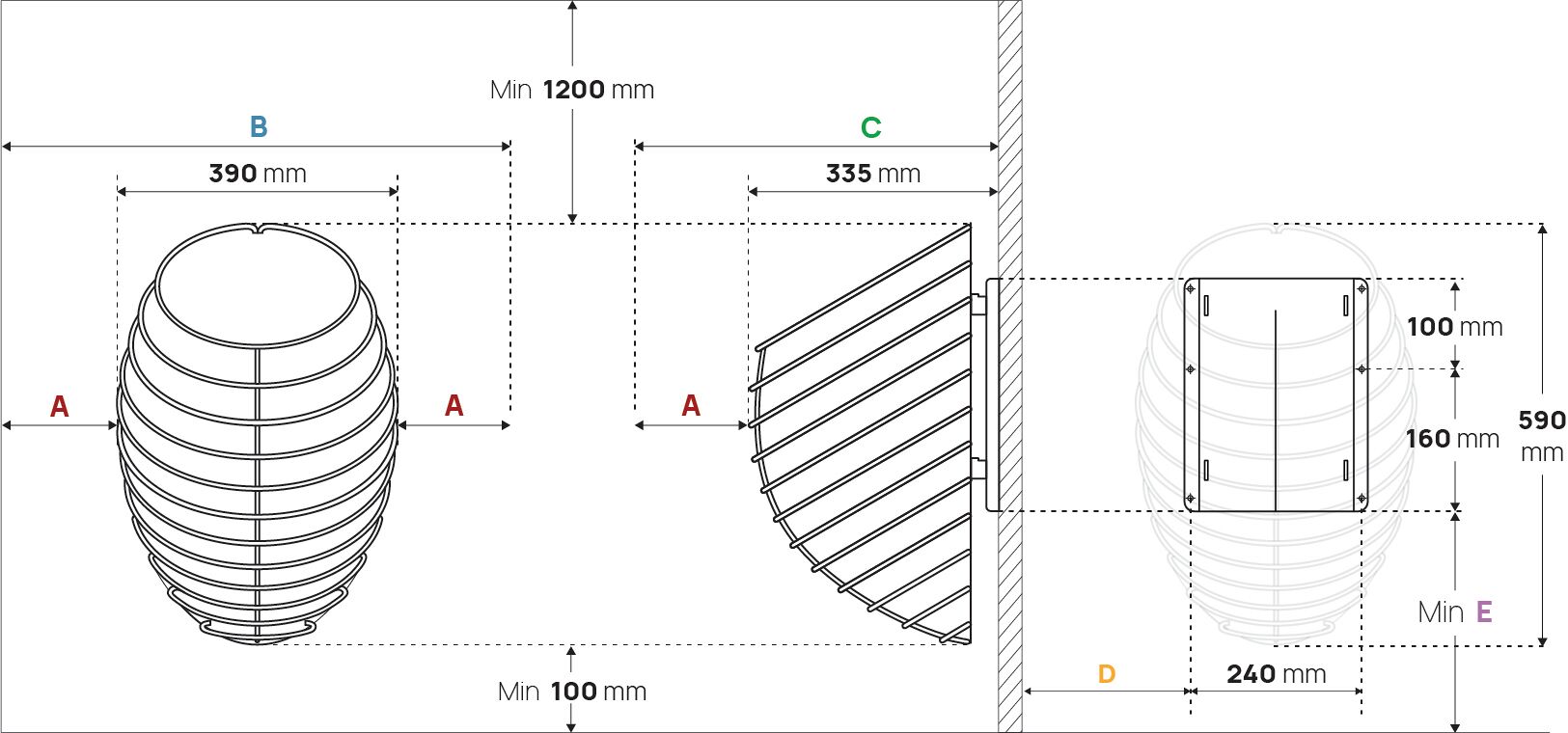

Safety distances

  • A 150 mm
  • B 690 mm
  • C 485 mm
  • D 220 mm
  • E min 310 mm
DROP electric sauna heater safety diagram
