CORE electric sauna heater
Electric sauna heaters
- Customizable design
- Minimal safety distances
- Control from the mobile app

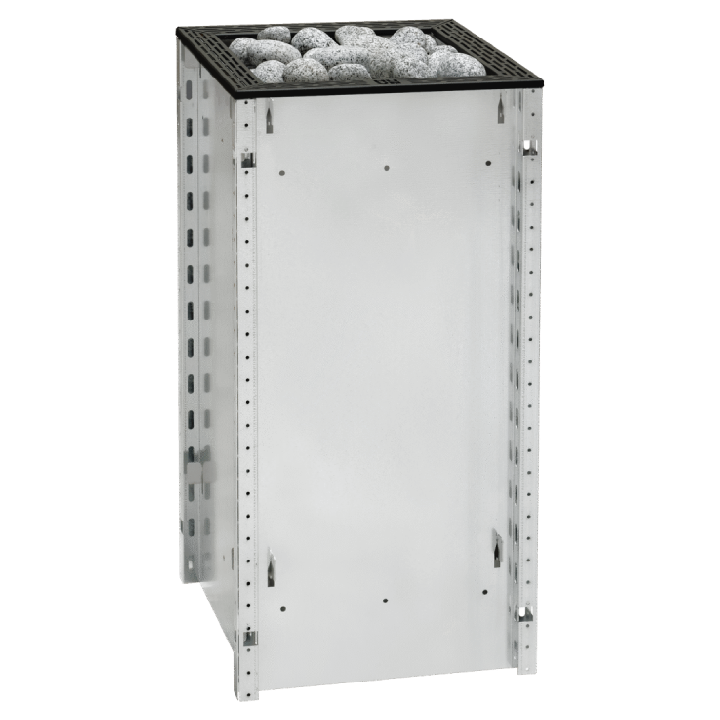

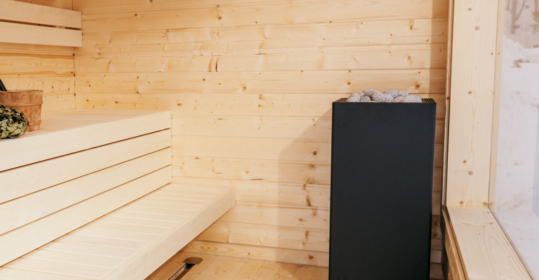

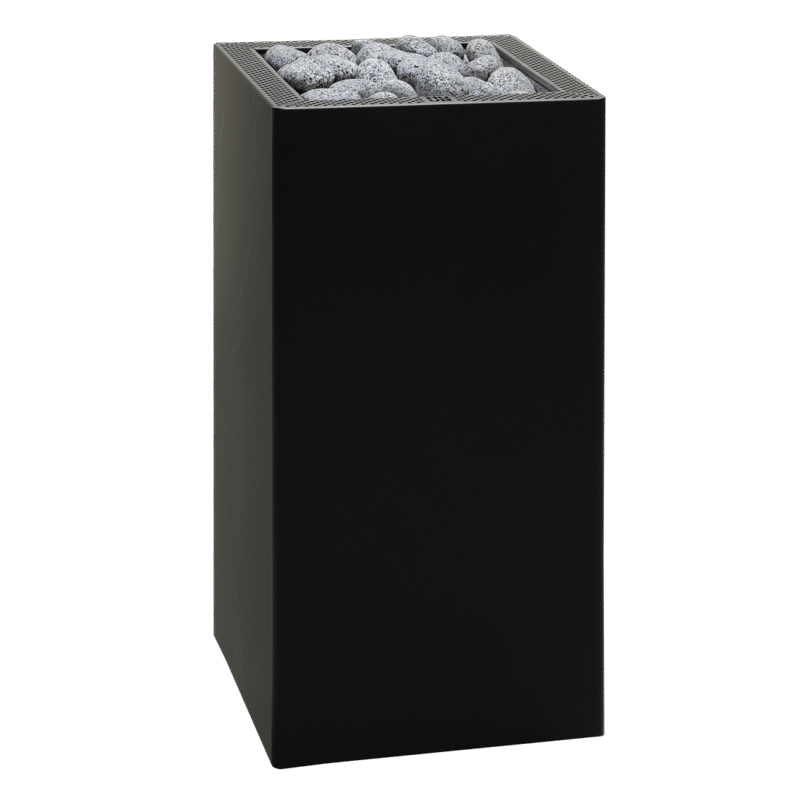

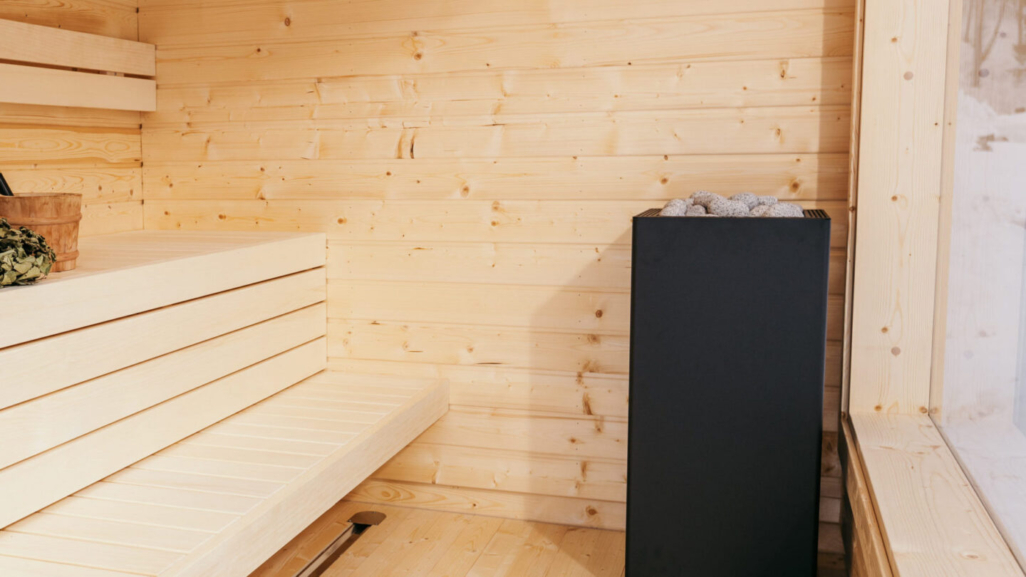

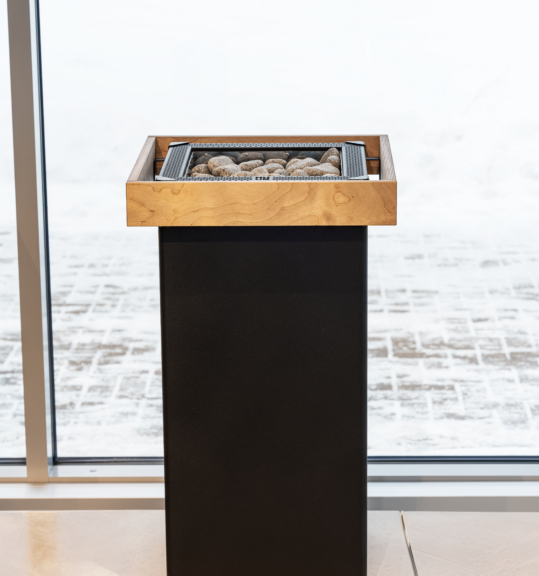

CORE electric sauna heater offers flexibility and style. It can be customized to suit your sauna design and comes in two options: CORE Black and CORE Body. If you prefer a ready-made solution, the stylish CORE Black, with its sleek black metal casing, is a great choice. However, if you want a personalized design, the CORE Body model without a case allows easy customization with ceramic tiles, stone, glass, or wood. You can also choose from different colored cover slats for the top rim and wooden side panels. Plus, the heater’s small safety distances allow for various placement options, including embedding it into the sauna bench. Despite its compact size, the powerful CORE sauna heater quickly heats up the steam room and provides a gentle steam experience.
Specifications
Models
Heater
- Power rating 6 kW
- Steam room min 5 m³
- Steam room max 9 m³
- Holding capacity of sauna rocks 30 kg
- Weight 19 kg
- Height 830 mm
- Width 385 mm
- Depth 385 mm
Connection
- Fuse 10 A
- Supply voltage, 3-phase 3/N~400 V
- Power cable (N x mm²) 5 x 1.5
230V 1N connection is analogous to a 3-phase connection. Division of heating circuits must precede the circuit breaker.

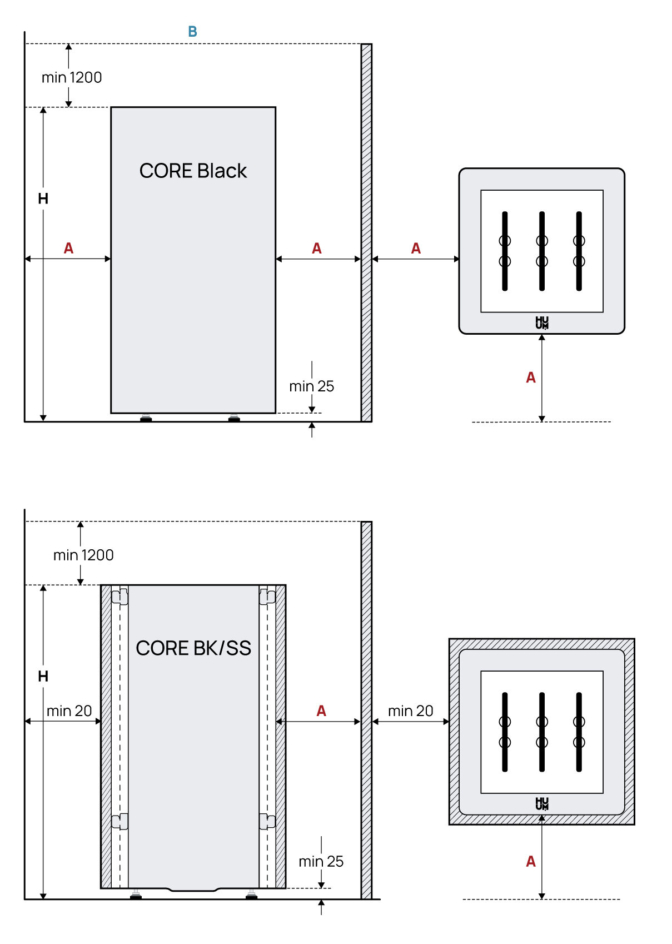

Safety distances
- A 40 mm
- B 465 mm
- H 830 mm
Heater
- Power rating 9 kW
- Steam room min 8 m³
- Steam room max 13 m³
- Holding capacity of sauna rocks 30 kg
- Weight 19 kg
- Height 830 mm
- Width 385 mm
- Depth 385 mm
Connection
- Fuse 16 A
- Supply voltage, 3-phase 3/N~400 V
- Power cable (N x mm²) 5 x 2.5
230V 1N connection is analogous to a 3-phase connection. Division of heating circuits must precede the circuit breaker.
Safety distances
- A 40 mm
- B 465 mm
- H 830 mm
Heater
- Power rating 10,5 kW
- Steam room min 10 m³
- Steam room max 16 m³
- Holding capacity of sauna rocks 30 kg
- Weight 19 kg
- Height 830 mm
- Width 385 mm
- Depth 385 mm
Connection
- Fuse 16 A
- Supply voltage, 3-phase 3/N~400 V
- Power cable (N x mm²) 5 x 2.5
230V 1N connection is analogous to a 3-phase connection. Division of heating circuits must precede the circuit breaker.
Safety distances
- A 40 mm
- B 465 mm
- H 830
The set includes
Heater additionally needs
- UKU sauna control system
- 30 kg of sauna stones with the diameter of 5–10 cm
- Heat-resistant power cable
Design options
- You can choose a control panel that suits the interior design of your sauna: GLASS, CLASSIC, or WOOD
- The UKU control system set already includes a black plastic control panel CLASSIC Black.

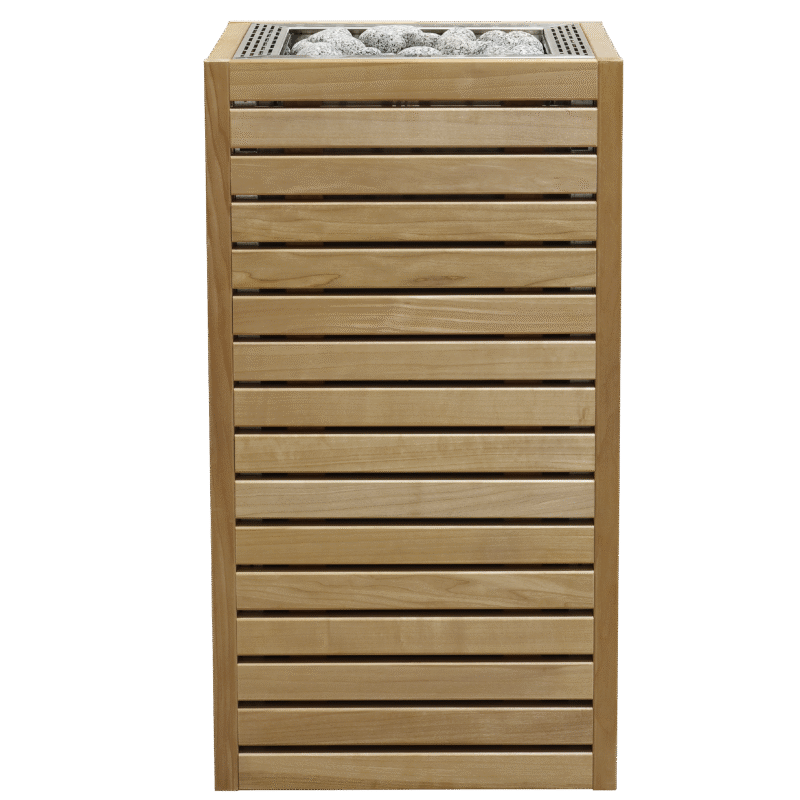

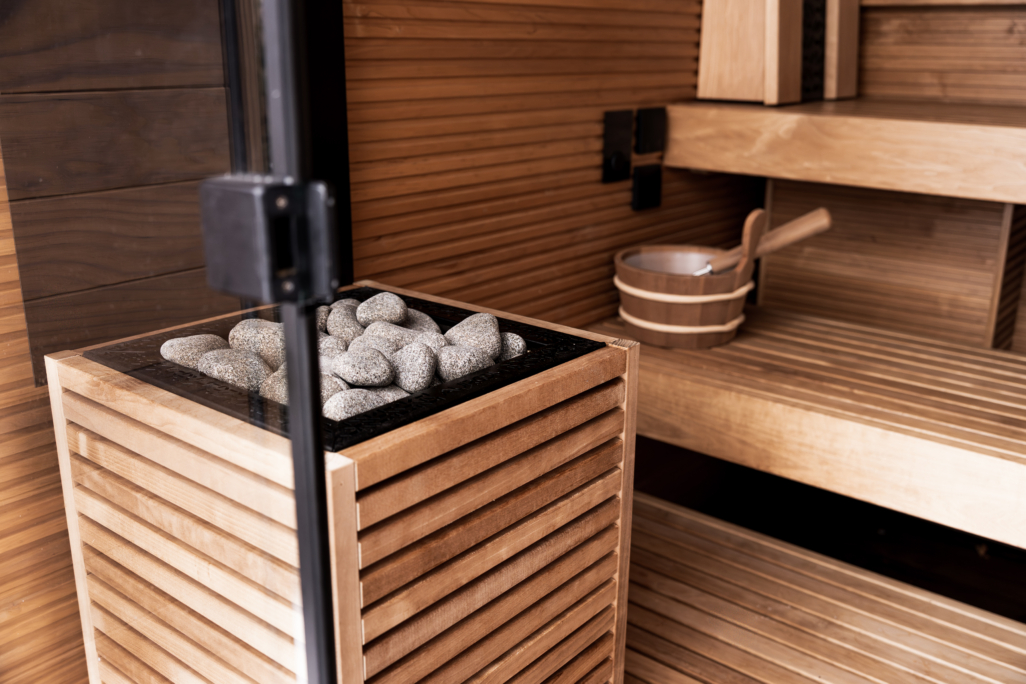

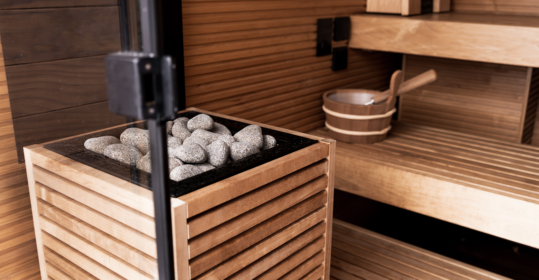

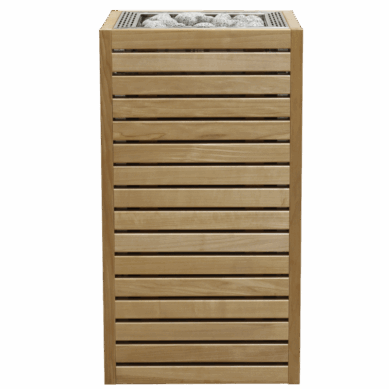

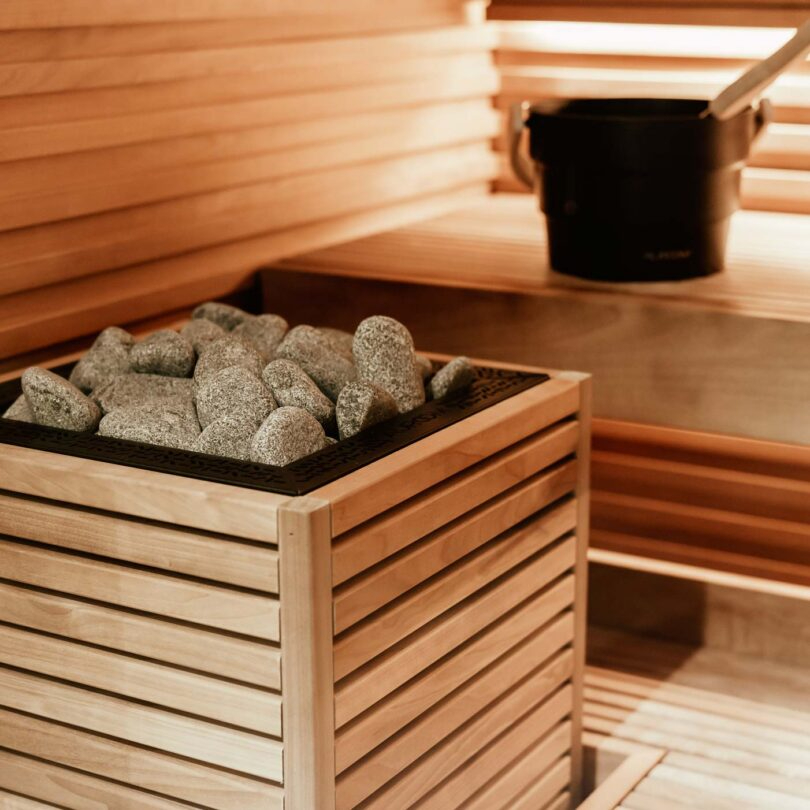

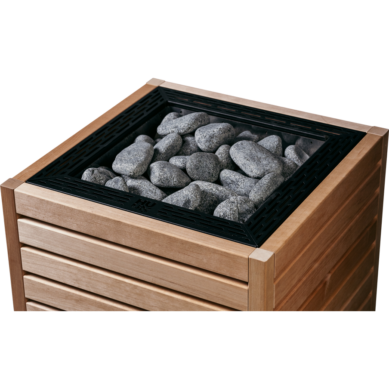

- Unfinished model of CORE electric sauna heater can be touched up with wooden panels that are available as accessories:

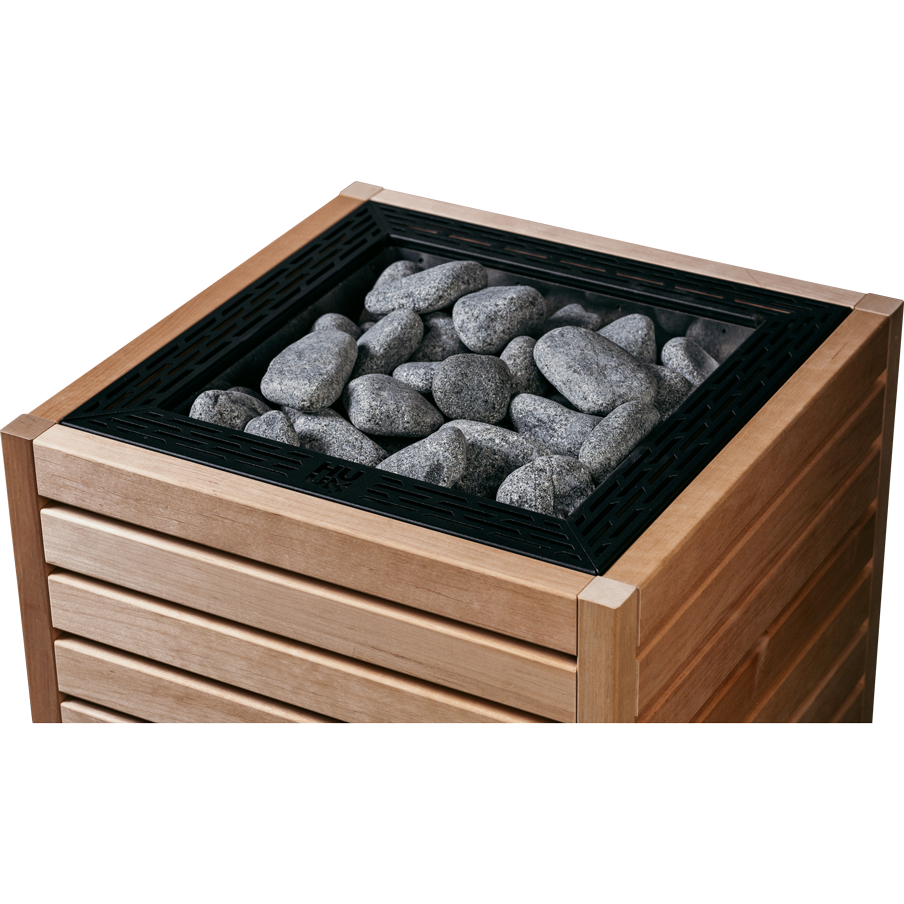

- The sauna heater is supplied with a black or a metal tone cover slat of the top rim. Contact your local distributor for further information on available choices.

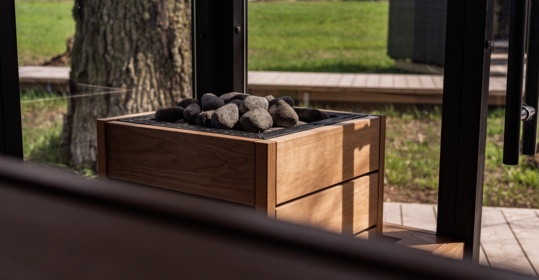

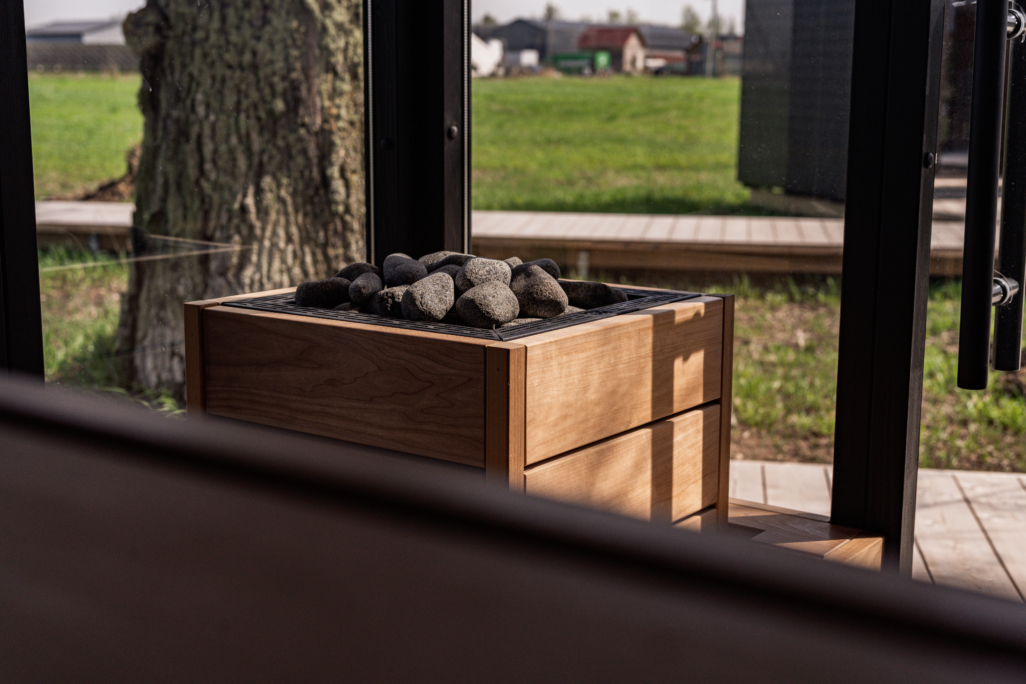

- As a design option, the CORE sauna heater can be embedded into the sauna bench:
- the sauna heater may be embedded into the sauna bench in its full length
- top of the sauna heater should not lie lower than the surface of the sauna bench
- air movement underneath the sauna bench should not be obstructed
Resources
-
HUUM CORE Manual
8.30 MB -
HUUM CORE OBJ
0.63 MB -
HUUM CORE Black SKP
16.34 MB -
HUUM CORE Black IFC
1.46 MB -
HUUM CORE Black 3DS
10.91 MB -
HUUM CORE With Wood Side Panels SKP
64.01 MB -
HUUM CORE With Wood Side Panels IFC
5.56 MB -
HUUM CORE With Wood Side Panels 3DS
15.22 MB -
HUUM CORE Black DWG
0.23 MB -
HUUM CORE ST/BK with wood panels DWG
0.18 MB
CORE sauna heater was born to offer alternatives
Development of CORE sauna heater was centered on freedom of choice. Discussions with sauna fans and collaboration partners across the world revealed the desire for a sauna heater that would convey the personality of its owner. We played around with the thought, and switched to product development.
We created an efficient sauna heater that does not require massive safety distances. It is therefore also suitable for small apartment saunas. In addition, the CORE electric sauna heater can be completely embedded into the sauna bench. Each sauna has its own character, and this applies to CORE sauna heaters as well. Its finishing touch may be based on wood, stone, ceramics or even glass. However, we did not allow any cut-downs on the steam – it is still pleasantly mild.
Made in EstoniaHUUM app enables one to heat the sauna from a smartphone

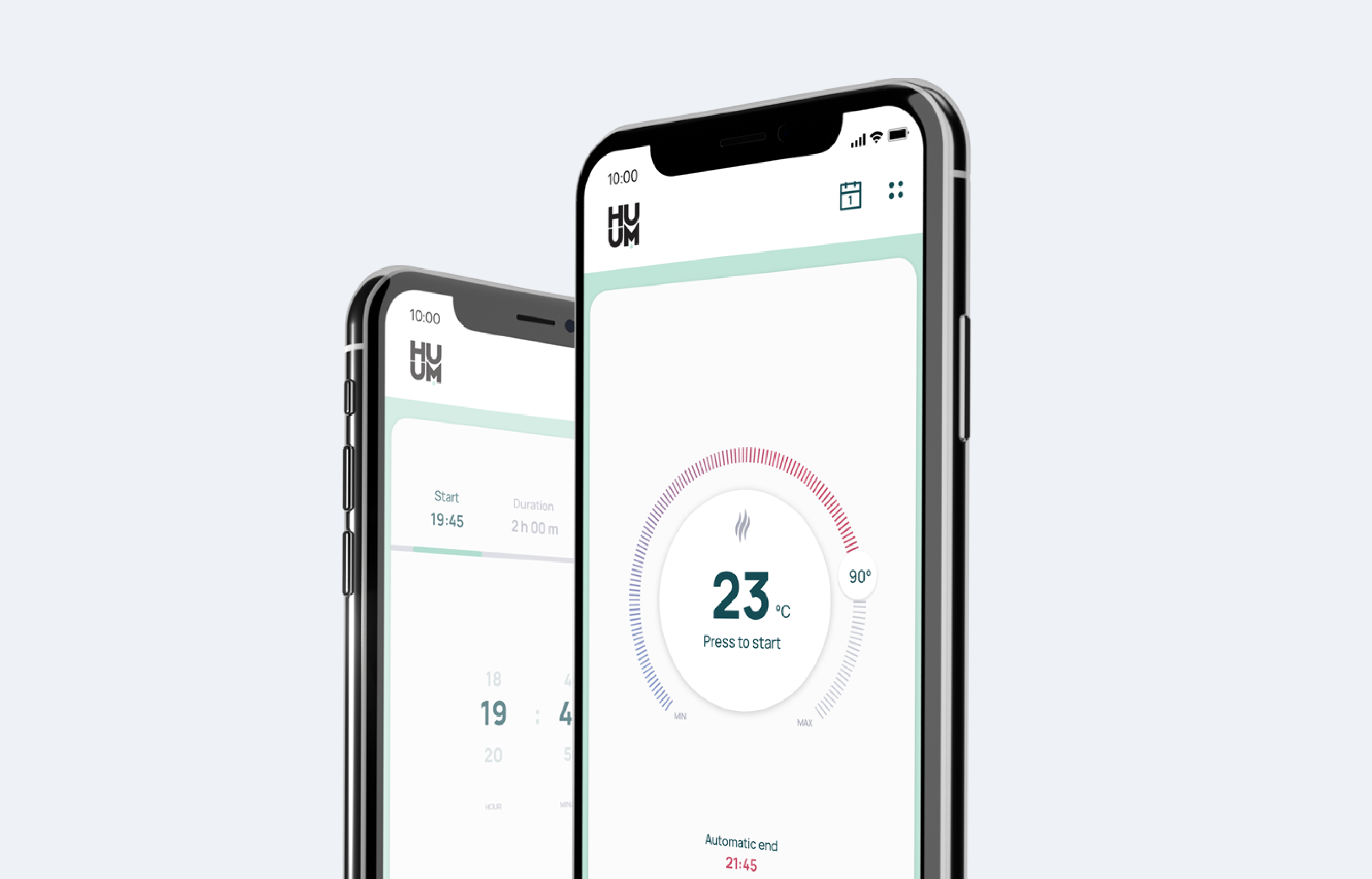

HUUM mobile app allows you to heat the sauna from your phone, wherever you are. It doesn’t matter whether you are heading home from the office, finishing your evening jog or simply wish to have an unplanned rewarding sauna evening with your friends – just a few clicks on the smartphone, and a hot sauna awaits you!
